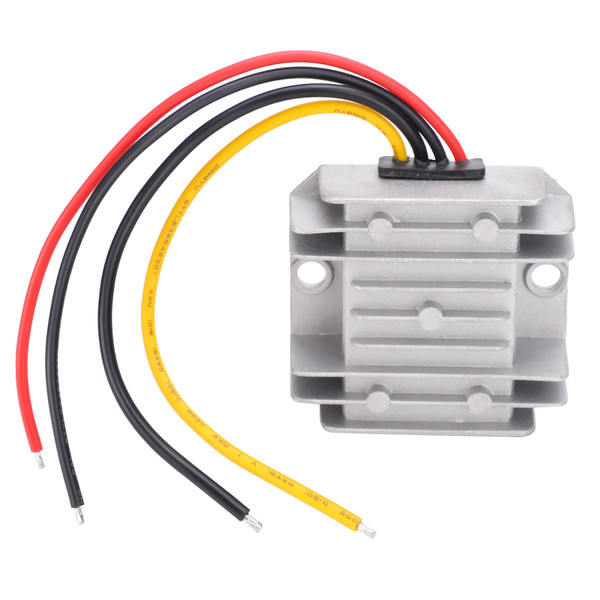

DC Power Converter 940V to 24V Automatic Buck Boost Voltage Regulator WG9-40S2403Z

Item Type: DC Power Converter
Material: Aluminum Alloy + Silicone
Model: WG9-40S2403Z
Input Voltage: DC 12V/24V
Input Voltage Range: 9-40V DC
Conversion Efficiency: 96%
Output Voltage: 24V DC
Output Current: 3A
Output Rated Power: 72W
Waterproof Rating: IP68
Working Temperature: -40℃~+80℃
Product Size: Approx. 6.5 x 6 x 2.3cm / 2.6 x 2.4 x 0.9in
Wiring Method:
Input Terminal: Red wire (+) positive, black wire (-) negative;
Output Terminal: Yellow (white) wire (+) positive, black wire (-) negative

Features

1、Aluminum alloy shell and imported high‑quality thermal silica gel potting, waterproof and dustproof, better heat dissipation effect.
2、The product has built-in protection functions such as over current, low voltage, over temperature, short circuit, etc.
3、Great workmanship, using imported components, such as black diamond, TI, ruby, etc.
4、Wide voltage input, up to 96% conversion efficiency; up to 100,000 hours of service life.
5、Widely used in automobiles, electric power, coal mines, aerospace, monitoring systems, railway signals, instrumentation, display screens, automation control, LED markets, etc.

Package List

1 x DC Power Converter
