Product Overview
Description:

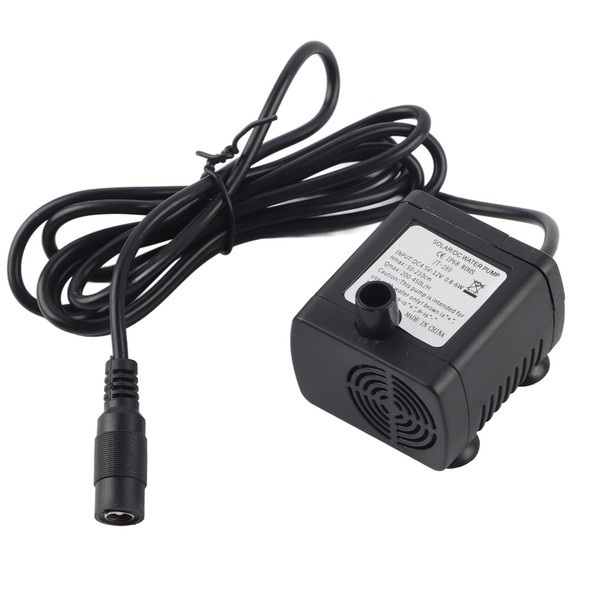

Brushless, permanent magnetic rotor, maintenance-free. Stator and circuit board sealed by epoxy resin. The axis is enclosed with static sealing, which can avoid leaking problems. Low noise (less than 35dB), low power consumption, small size and high efficiency.
Features:
Adopt high performance stainless steel shaft. Amphibious design, able to work either on land or in water.
Long life, low noise less than 35dB, and can be used for hot water circulation.
Small size, high efficiency, low consumption.
Without separate lubrication and cooling water, reducing energy consumption.
Suitable for fountain, fish pond, etc.
Specifications:
Condition: New
Color: Black
Voltage: DC 12V
Current: 0.4A
Power: 5W
Max Water Head: 2M
Max Flow Rate: 420L/H
Starting Voltage: 4.5V
Waterproofing Grade: IP68
Ambient Temperature: -20~60℃
Operating Humidity: Less than 90%RH
Liquid Temperature: -20~60℃
Using Liquid: Water or nonflammable liquid with good fluidity
Operation Place: Fountains and so on
Unpitched Sound: Less than 35dB
PUMP Shell Material: ABS
Motor Magnet: Ferrite magnetsThe pump connector is 5521 female head, and the power supply should be 5521 male head.
3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
4. The solar panel voltage must be 12V lower than this voltage will cause no work and insufficient pumping.
Brushless, permanent magnetic rotor, maintenance-free. Stator and circuit board sealed by epoxy resin. The axis is enclosed with static sealing, which can avoid leaking problems. Low noise (less than 35dB), low power consumption, small size and high efficiency.
Features:
Adopt high performance stainless steel shaft. Amphibious design, able to work either on land or in water.
Long life, low noise less than 35dB, and can be used for hot water circulation.
Small size, high efficiency, low consumption.
Without separate lubrication and cooling water, reducing energy consumption.
Suitable for fountain, fish pond, etc.
Specifications:
Condition: New
Color: Black
Voltage: DC 12V
Current: 0.4A
Power: 5W
Max Water Head: 2M
Max Flow Rate: 420L/H
Starting Voltage: 4.5V
Waterproofing Grade: IP68
Ambient Temperature: -20~60℃
Operating Humidity: Less than 90%RH
Liquid Temperature: -20~60℃
Using Liquid: Water or nonflammable liquid with good fluidity
Operation Place: Fountains and so on
Unpitched Sound: Less than 35dB
PUMP Shell Material: ABS
Motor Magnet: Ferrite magnetsThe pump connector is 5521 female head, and the power supply should be 5521 male head.
3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
4. The solar panel voltage must be 12V lower than this voltage will cause no work and insufficient pumping.
Features
1、Adopt high performance stainless steel shaft. Amphibious design, able to work either on land or in water
Package List
1 x DC 12V micro submersible water pump
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 1.95 Inch |
| Length | 3.9 Inch |
