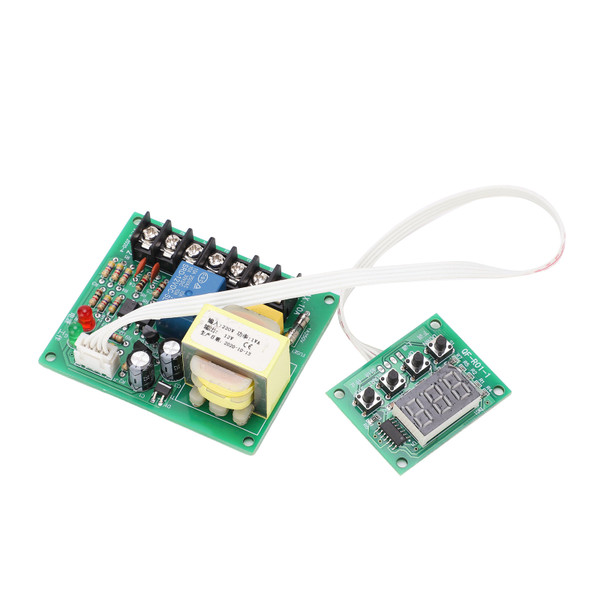

Delay Relay Module Optocoupler Isolation Timer Industrial Control Components QFR012

Item Type: Delay Relay Module
Material: PCB
Power Consumption: 0.8W
Load Capacity: 15A or less
Input: External start, stop, onboard start, stop, up, down
Protection: Onboard 1A fuse, external signal optocoupler to isolate interference
Time Range: 1-999 (adjustable unit: milliseconds, seconds, minutes, hours)
Cable Length: Approx. 30cm / 11.8in
Center Distance of Mounting Hole: Approx. 68 x 56mm / 2.7 x 2.2in
Hole Diameter: Approx. 3.2mm / 0.1in x 4
How to Use:
Adjust Down: Adjust the time down until it is 1, press and hold to adjust quickly
Adjust Up: Adjust the time up until it is 999, press and hold for quick adjustment
Stop: Stop the countdown immediately, turn off the output, the external stop button has the same function
The Time Unit Code is As Follows:
P00 unit is second, if the number shows 030, the time is 30 seconds
P01 unit is minute
P03 unit is hour
P04 unit is 0.1 second. Note that the decimal point will not be displayed on the display

Features

1、The product has high accuracy, wide delay range, and digital setting of delay time
2、Come with a digital display screen, which can reflect the delay time more intuitively
3、Onboard 1A fuse, optocoupler isolation guarantee stable work, preventing signal interference
4、Power consumption only 0.8W, time range from 1-999, adjustable unit contain milliseconds, seconds, minutes, hours
5、Input functions include external start, stop, onboard start, stop, up, and down, convenient to use

Package List

1 x Delay Relay Module
