Product Overview

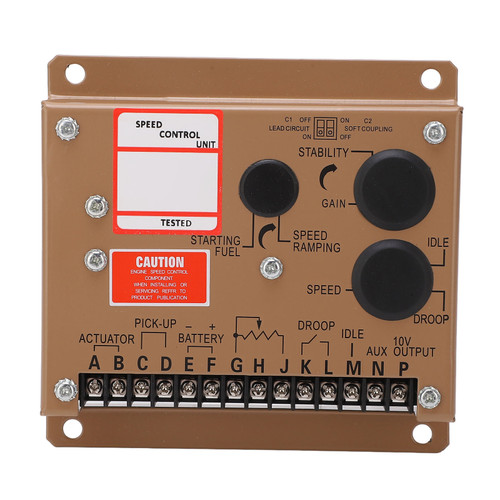

Item Type: Diesel Generator Speed Controller
Product Size: Approx. 15 x 11.8 x 5cm / 5.9 x 4.6 x 2in
Speed Stability: Better than 0.25%
Speed Range: 1KHz~6.5KHz
Thermal Stability: ±0.7%
IDLE Adjustment: 260±20Hz to 85% of rated speed
DROOP Adjusts:
Small Position: 15Hz±6Hz/ load current change per ampere
Position: 400Hz±75Hz/ load current change per amp
External Speed Adjustment: ±200Hz(external 1KΩ)
AUX Input Sensitivity: 148Hz/1V., ±10Hz., impedance 1MΩ
Environment:
Operating Temperature Range: -40℃ to 85℃
Operating Humidity Range: 95%
Storage Temperature: -55℃ to 92℃
Vibration: 20-100HZ 500mm/Sec.
Input Power Supply:
Ground Polarity: Negative
Power consumption 40mA
Continuous Current Of Actuator: Small 1A; 4.5A (3062322 current can reach 8A)
Speed Sensor Signal: 2~120VRMS
Note: The above performance parameters are measured at the operating frequency of 3800Hz
Material: Plastic
Weight: 754 g / 26.6 oz(approx.)
Product Size: Approx. 15 x 11.8 x 5cm / 5.9 x 4.6 x 2in
Speed Stability: Better than 0.25%
Speed Range: 1KHz~6.5KHz
Thermal Stability: ±0.7%
IDLE Adjustment: 260±20Hz to 85% of rated speed
DROOP Adjusts:
Small Position: 15Hz±6Hz/ load current change per ampere
Position: 400Hz±75Hz/ load current change per amp
External Speed Adjustment: ±200Hz(external 1KΩ)
AUX Input Sensitivity: 148Hz/1V., ±10Hz., impedance 1MΩ
Environment:
Operating Temperature Range: -40℃ to 85℃
Operating Humidity Range: 95%
Storage Temperature: -55℃ to 92℃
Vibration: 20-100HZ 500mm/Sec.
Input Power Supply:
Ground Polarity: Negative
Power consumption 40mA
Continuous Current Of Actuator: Small 1A; 4.5A (3062322 current can reach 8A)
Speed Sensor Signal: 2~120VRMS
Note: The above performance parameters are measured at the operating frequency of 3800Hz
Material: Plastic
Weight: 754 g / 26.6 oz(approx.)
Features
1、ENVIRONMENTALLY FRIENDLY: Possess low smoke, low noise, meet the requirements of environmental protection, improve people feeling
2、LOW TEMPERATURE START: Diesel generator speed controller is easy to start in cold, harsh environment
3、STABLE AND INTERFERENCE RESISTANT: Come with strong non interference ability, stable operation, very reliable
4、PREVENT DAMAGE: The output protector can protect the actuator from damage caused by short circuit, you can use with confidence
5、EXCELLENT PERFORMANCE: Generator speed control governor possess stable performance, running speed, idle regulation, quick response
Package List
1 x Diesel Generator Speed Controller
Package Weight and Dimension
| Weight | 1.7 lb |
| Width | 5.07 Inch |
| Height | 2.73 Inch |
| Length | 7.02 Inch |
