Product Overview

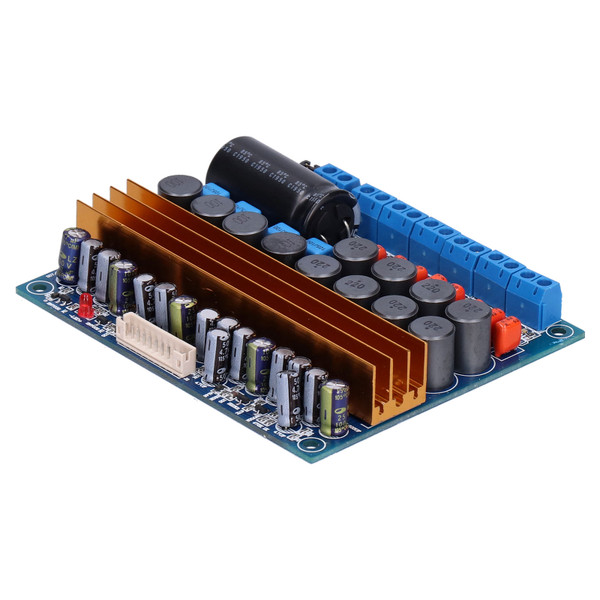

Item Type: Digital Power Amplifier Board
Material: PCB
Chip Model: TPA3116
Working Method: Class D
Quiescent Current: 150mA
Work Efficiency: 90%
Rated Output Power: 100W + 100W + 4 x 50W
Frequency Response: 20Hz-20KHz
Working Voltage: DC18V-24V
Material: PCB
Chip Model: TPA3116
Working Method: Class D
Quiescent Current: 150mA
Work Efficiency: 90%
Rated Output Power: 100W + 100W + 4 x 50W
Frequency Response: 20Hz-20KHz
Working Voltage: DC18V-24V
Features
1、Module is mainly used to prevent the horn from being damaged by the high current impact when the amplifier is just turned on.
2、The large heat dissipation area can make the power amplifier board run for a long time.
3、Using 1.6mm thick double‑sided PCB board, the whole process of spraying tin to ensure good current passing performance.
4、The amplifier board adopts DC18-24V single power supply voltage, which can send a group of electric energy to the amplifier board.
5、Adopting one‑piece molding design, glossy appearance without burrs, and smoother installation.
Package List
1 x Digital Power Amplifier Board
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 1.56 Inch |
| Length | 5.85 Inch |
