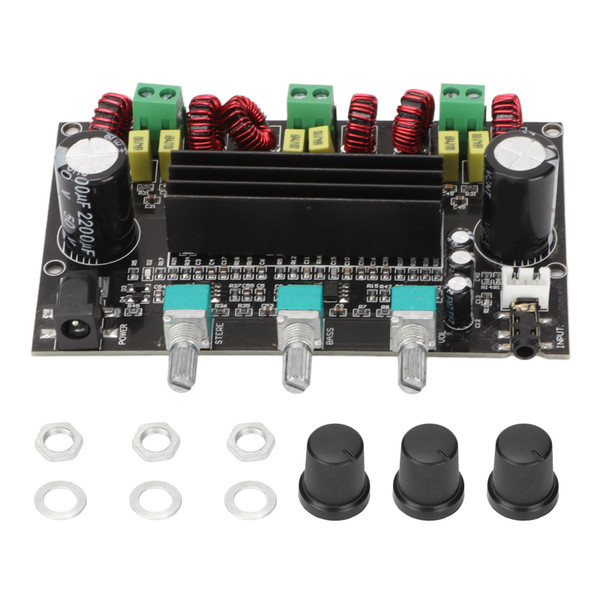

Product Overview
Item Type: Digital Power Amplifier Board
Material: PCB
Supply Voltage: DC12-26V (DC24V Recommended)
Number of Channels: 3 Channels (Left + Right + Subwoofer)
Output Power: 80Wx2+100W (Subwoofer)
Output Load: 4-8Ω
Frequency Response Range: 14-100KHZ
Signal to Noise Ratio: 100db
Switching Frequency: 1.2MHZ
Material: PCB
Supply Voltage: DC12-26V (DC24V Recommended)
Number of Channels: 3 Channels (Left + Right + Subwoofer)
Output Power: 80Wx2+100W (Subwoofer)
Output Load: 4-8Ω
Frequency Response Range: 14-100KHZ
Signal to Noise Ratio: 100db
Switching Frequency: 1.2MHZ
Features
1、Superior Performance: Power amplifier board output power 80Wx2+100W, 2.1 channel stereo, high efficiency, high amplification power.
2、Power Supply: Digital power amplifier board is powered by DC 12‑26V and has a wide input voltage for greater adaptability.
3、Advanced Chip: Power amplifier board uses the TPA3116D2 chip as its core and is a high performance digital amplifier chip.
4、Built in Potentiometer: Subwoofer power amplifier board with built in volume, subwoofer and satellite potentiometers for sound customisation.
5、Pure Sound Quality: 2.1 channel power amplifier board with 100 dB signal to noise ratio, good sound quality and pure music.
Package List
1 x Power Amplifier Board
3 x Knob Cover
3 x Nut
3 x Spacer
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 4.29 Inch |
| Height | 1.56 Inch |
| Length | 6.24 Inch |
