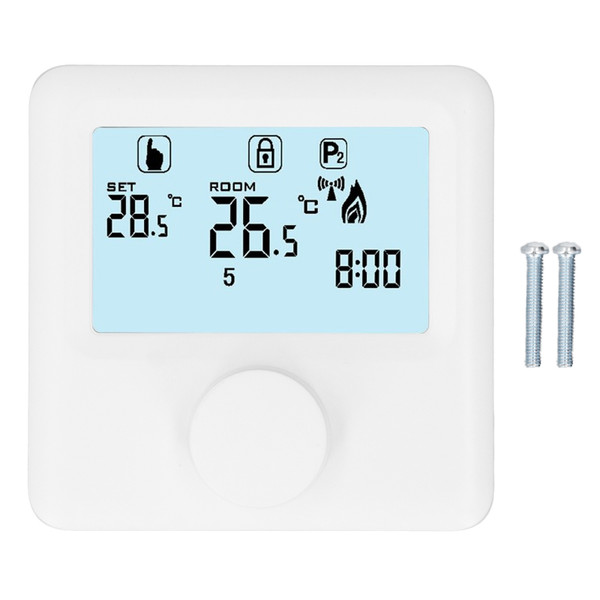

Digital Temperature Controller LCD Display Programmable Thermostat for Boiler White 30‑230VDC

Item Type: Digital Temperature Controller
Material: Flame Retardant PC
Power Supply Mode: 2 x AA batteries (delivered without batteries)
Display Accuracy: 0.5 ℃
Probe Sensor: NTC (10k) 1%
Contact Capacity: The greater the working voltage of 30-230VDC, the smaller the current. Take 5A 30V (HF relay) or 2A 30V (NEC relay) as reference
Temperature Display Range (limit temperature control range): 1 to 40 ℃
Default Temperature Regulation Range: 5 to 35 ℃
Operating Temperature Range: 0 to 50 ℃
Running Program: Set once a week
Output: Switch relay

Features

1、Main Function: The maximum temperature controller range of this thermostat is 1 to 40℃, and the start and stop temperatures can be set to control the heating equipment.
2、Applicable Equipments: This thermostat can be used for temperature control of wall mounted boiler and gas boiler.
3、Microcomputer Control Technology: By comparing with the set temperature, start and stop of heating equipment are controlled by relay to achieve constant temperature and energy conservation.
4、LCD Display: Comes with a large LCD display, you can easily see and monitor the running statues of the thermostat.
5、Small Size: This thermostat is small in size, easy to install, beautiful and generous, and will complement your furniture.

Package List

1 x Digital Temperature Controller

2 x Screw
