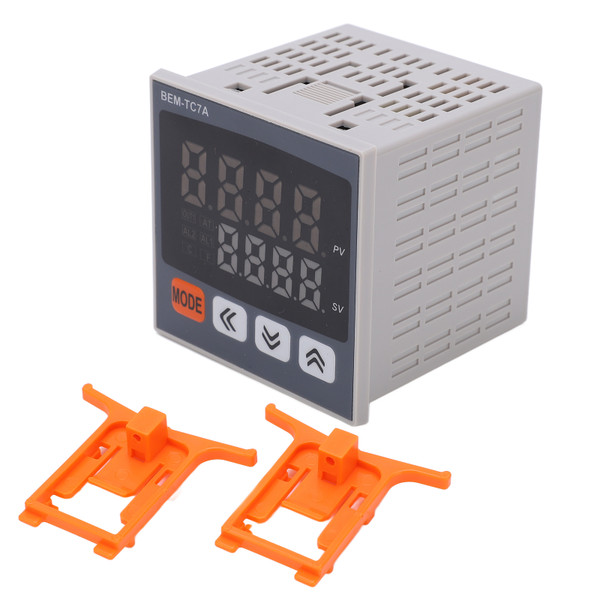

Digital Thermostat PID Temperature Controller Intelligent Relay Output Thermostat 100240VAC(BEM-TC7A-14RV )

Item Type: Thermostat
Material: ABS
Application: Used in many products such as home appliances, motors, refrigeration or heating
Display Mode: 7 segment LED (PV: red, SV: green)
Control Output: Relay 250VAC 3A 1a solid state 12VDC±2V 20ma or less
Alarm Output: AL1.AL2
Relay: 1A.1a
Control Method: ON/OFF.P.PI.PD.PID control
Input Type: Factory default K (CA) type adjustable J (IC), L (IC), T (CC), R (PR), S (PR)
Control Accuracy: 1~100℃/0.1~50.0℃

Features

1、[Detachable Shell] This thermostat has a simple detachable shell design, which is convenient for maintenance, safe and reliable.
2、[PID Control] The intelligent temperature controller has PID control adjustment, alarm switch, and multiple input methods.
3、[Relay Solid State Output] With solid state output, relay output, two output functions, can meet your various needs.
4、[Sensitive And Accurate] High accuracy chip temperature controller, with accurate temperature control, high sensitivity, convenient operation, and can be used with confidence.
5、[Widely Application] Digital thermostat is widely used in a mamy situations, such as home appliances, motors, industry, etc.

Package List

1 x Thermostat

2 x Bracket

1 x Manual
