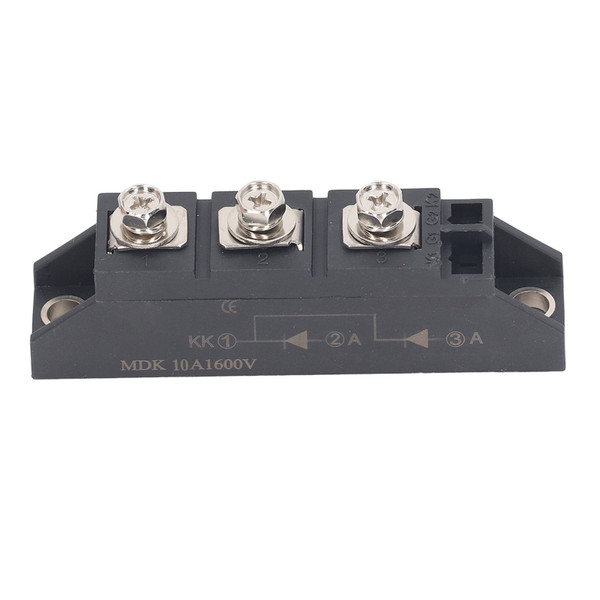

Product Overview
Forward Voltage(Vrrm): 1600V
Terminal: 3
Positive and Negative Leakage Current: ≤8mA
Insulation Voltage: 2500V AC
Maximum Rated Junction Temperature: 150℃
Features
1、CURRENT AND VOLTAGE: Diode rectifier power supply module output DC current, maximum voltage is 1600V, efficient and practical
2、APPLICATION SCENARIO: The rectifier module can be used in photovoltaic bus boxes, photovoltaic DC cabinets, and photovoltaic DC systems, easy to install and maintain
3、GOOD PERFORMANCE: The rectifier module welding structure is stable, with good power cycle and temperature characteristics, safe and durable
4、FAST HEAT DISSIPATION: Bridge rectifier adopt copper plate cooling, possess high heat dissipation efficiency, and prolong the service life of the module
5、STABLE STRUCTURE: Diode rectifier module with full compression structure, small size, light weight, easy to use
6、TEMPERATURE RANGE: Anti reverse diode module maximum operating temperature can reach 150℃, the forward voltage drop is small, and the reverse repeat peak voltage can reach 1600V
Package List
1 x Diode Rectifier Module
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 0.78 Inch |
| Length | 5.46 Inch |
