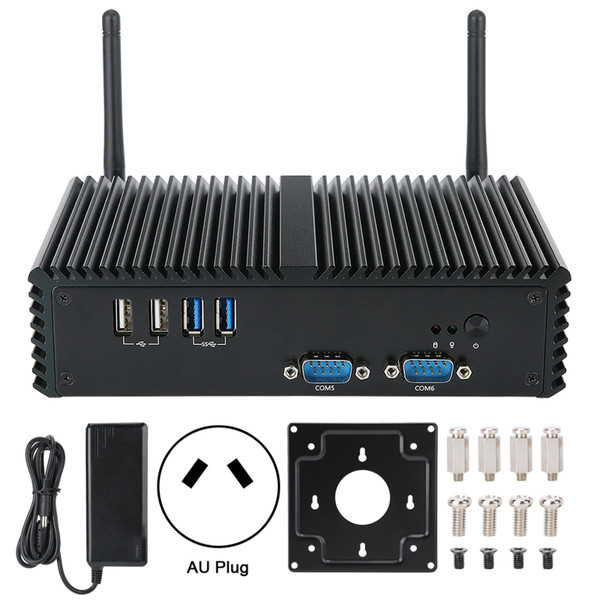

Dual Core Industrial Mini PC 6COM Mini Computer Host 4GB RAm64GB SSd1TB HDD for Intel i5 4200U

Item Type: Mini PC
CPU: For Intel i5 4200U dual-core four-thread processor 3 M Cache, up to 2.6GHZ, for Intel HD Graphics 4400
Memory: 4GB DDR3
Hard Drive: 64GB msata SSD + 1TB HDD
System: Pre-installed for windows 7 64bit or for windows 10 64bit randomly
Chipset: CPU integration
Display: Integrated for Intel HD Graphics
Network: For Intel i211-AT network card chip x 2
PCI-E bus Gigabit network card
1xMINI PCI-E interface, 300Mbpss dual-band wireless network
Audio: RealtekALC662
Storage: 1 x SATA3.0, 1 x mSATA solid state drive, 1 x 2.5inch SATA HDD expansion
Interface: USB 4 x USB3.0, 2 x USB2.0
COM Port: 6xRS-232
Watchdog: Support
GPIO: Extensible
COM: 6xRS-232
Front Interface:
Power Switch: 1 x power switch
Power Indicator: 1 x power indicator
Hard Drive Indicator: 1 x hard drive indicator
USB Interface: 2 x USB3.0, 2 x USB2.0
Serial Port: 2 x RS-232 (COM5, COM6)
Back Interface:
Power Interface: 5.5mm outer diameter. Inner diameter 2.5mm
2XHDM interface
Display interface
CoM3 can be changed to VGA network interface
2 x Gigabit LAN
USB: 2 x USB 3.0
Audio Interface: 1 x microphone interface, 1 x ordinary audio output interface 4xRS-232 (COM1, COM2.COM3, COM4)
Serial Port: COM2 can be set to RS4B5
SMA Antenna Interface: 2x
Operating System: Supports for Windows 7,
for Windows 8,
for Windows 10, for Linux
Working Temperature: -20℃ to 80℃
Shell Material: Aluminum alloy
Reference Size: Approx. 187 x 111 x 50mm / 7.4 x 4.4 x 2in
Weight: 1096 g / 38.7 oz(approx.)
Cooling Method: No fan, passive cooling
Bracket: VESA hanger

Features

1、For Intel i5 4200u dual-core 4-thread powerful processor, up to 2.6GHZ, with 4GB DDR3 RAM, 64GB SSD and 1TB HDD to bring quick response to the system while satisfying your mass storage.
2、Support power on boot, Wake-on-LAN function.
3、7 x 24 hours operation, low power consumption, energy saving, small size.
4、Rich industrial computer interface, designed for industry.
5、Equipped with 6 COM ports, dual 4K HDMI interfaces, dual-port Gigabit network card.
6、Application: Home, office, education multimedia, hotel, projection, advertising signboard, TV, restaurant, medical, client end.

Package List
