Product Overview

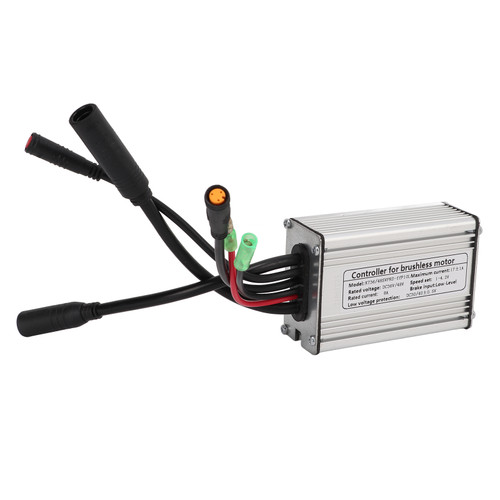

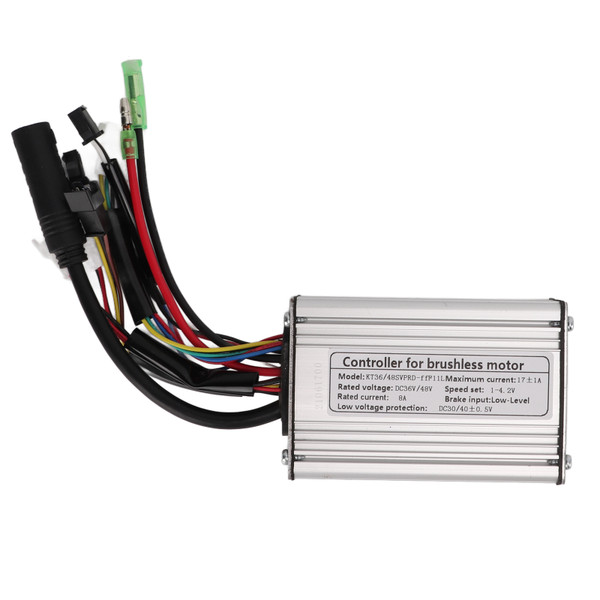

Item Type: 36V/48V 17A Controller
Color: As Pictures Shown
Material: Aluminum Alloy
Weight: Approx.308g/10.9oz
Controller Type: Sine Wave Controller
Maximum Current: 17±1A
Speed Setting: 1-4.2V
Rated Current: 8A
Brake Input: Low Level
Controller Wire Color Connector Description:
1. Black Long Wire: Motor Wire
2. Red and Black Single Big Wire: Power Cord
3. Red, Blue, Black, Green and Yellow Five Wire Port: Instrument Wire
4. Red and Black Wires (Two Connectors): Light Wires
5. Red and Blue Wires (Two Connectors): Power off Brake Lever Wire
6. Red and Black Lines: Thumb Throttle Wire
7. Brown Black Yellow Line: PAS Speed Assist Sensor Wire
Color: As Pictures Shown
Material: Aluminum Alloy
Weight: Approx.308g/10.9oz
Controller Type: Sine Wave Controller
Maximum Current: 17±1A
Speed Setting: 1-4.2V
Rated Current: 8A
Brake Input: Low Level
Controller Wire Color Connector Description:
1. Black Long Wire: Motor Wire
2. Red and Black Single Big Wire: Power Cord
3. Red, Blue, Black, Green and Yellow Five Wire Port: Instrument Wire
4. Red and Black Wires (Two Connectors): Light Wires
5. Red and Blue Wires (Two Connectors): Power off Brake Lever Wire
6. Red and Black Lines: Thumb Throttle Wire
7. Brown Black Yellow Line: PAS Speed Assist Sensor Wire
Features
1、Easy to Install: 17A controller adopts high quality wire, durable, convenient and practical.
2、Improve Efficiency: Use aluminum alloy shell, good heat dissipation performance.
3、Applicable Model: Suitable for 250W and 350W motors, only applicable for KT series products.
4、Sine Wave Controller: Can avoid the sudden change of current during commutation, with low noise and stable output.
5、Simple Operation: Connect the corresponding connector to the corresponding product according to the controller interface description in the manual.
Package List
1 x Controller
1 x Manual
Package Weight and Dimension
| Weight | 0.7 lb |
| Width | 3.51 Inch |
| Height | 3.51 Inch |
| Length | 5.46 Inch |
