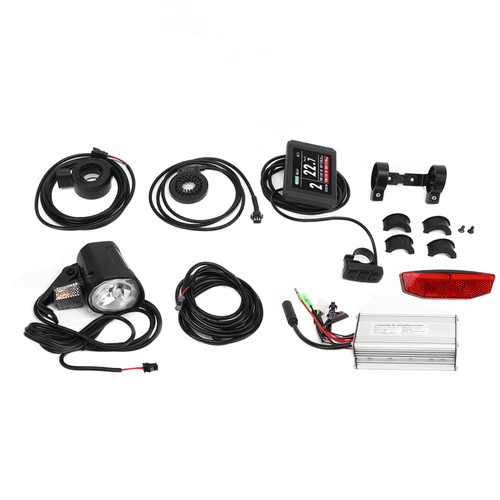

Electric Bike Conversion Kit 30A Sine Wave Controller with Light Wire LCD8H Panel Thumb Throttle for 1000W Motor

Item Type: Electric Bike Conversion Kit
Material: ABS, rubber, aluminum, metal
Weight: Approx. 1196g/42.19oz
Applicable: Applicable to 1000W motor. Matching communication protocol for KT products to use (commonly known as the No. 1 communication protocol)
Controller Size: 170x80x40mm/6.69x3.15x1.57in
Maximum Current: 30±2A
Controller Rated Current: 15A
Controller Speed Setting: 1-4.2V
Braking: Input low level

Features

1、Complete Kit: The bike kit includes 30A sine wave controller with lights, LCD8H meter, thumb throttle, power sensor wiring, power sensor power chip, controller bag. The kit is suitable for DIY bike conversion and can meet all your needs.
2、Controller Features: The controller housing is made of metal with a recessed design. Thanks to the good heat dissipation, it guards the internal circuitry, thus avoiding thermal overload.
3、Meter Features: ABS material, which is lightweight, strong and durable, with good toughness and waterproof performance, providing better protection for internal circuitry and making it more durable.
4、Multiple Data Display: While riding your bike, the LCD8H meter displays many useful data on your bike, such as on off buttons, light switches, battery level display and other functions. One display allows you to keep track of your ride at all times.
5、Wide Application: The kit is for 1000W motor and mainly used for DIY electric bikes, electric scooters, folding bikes, etc. These accessories are easy to maintain and greatly enhance the fun of riding for those who like challenges.

Package List

1 x LCD8H Meter

1 x Meter Support

4 x Rubber Washer

2 x Screw

1 x Controller

1 x Controller Bag

1 x 10b Power Sensor Wiring

1 x 10b Power Sensor Power Chip

1 x Thumb Throttle

2 x Instruction
