Product Overview
Material: Aluminum Alloy, ABS Plastic
Gross Weight: 977g / 34.5oz
Controller Rated Voltage: DC 36 48V
Controller Rated Current: 12A
Controller Speed Setting: 1-4.2V
Maximum Current: 25A ± 1A
Controller Brake Input: low level
Low Voltage Protection: DC 30 40 ± 0.5A
Features
1、Application: This electric bike retrofit kit is applicable to 36V 48V 500W 750W motor, please use it according to the corresponding voltage and power.
2、Good Heat Dissipation: The controller shell is made of premium metal with slot design, because of its good heat dissipation function, it can preserve the internal circuit to avoid thermal overload.
3、Waterproof: The panel is made of premium ABS material, which is light, durable, fine workmanship, and has good toughness and waterproof performance, providing better protection for the internal circuit and making it more durable.
4、Main Use: This controller panel kit can be used for DIY electric bikes, electric vehicles, electric scooters, folding bikes, etc.
5、Easy Maintenance: The bike lithium battery modification greatly improves the fun of riding, easy to maintain and suitable for cyclists who like challenges.

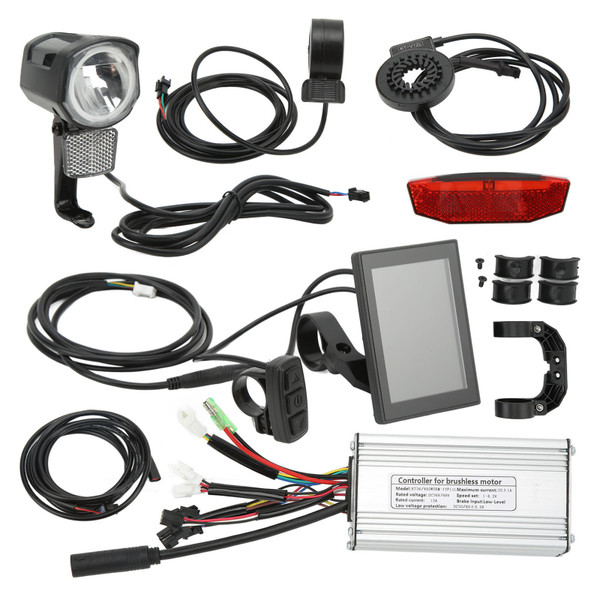

Package List
1 x Controller
1 x Panel
7 x Panel Accessories
1 x Panel Instructions
1 x Thumb Throttle
1 x Power Sensor
1 x Front Lamp
1 x Tail Lamp
1 x Tail Lamp Cable
1 x Instruction
Package Weight and Dimension
| Weight | 2.15 lb |
| Width | 5.46 Inch |
| Height | 4.68 Inch |
| Length | 8.58 Inch |
