Electric Scooter Modification Kit 15A Sine Wave Controller LCD5 Panel 10B Power Assist Sensor 20X Twist Throttle QD252 Headlight for 36V 48V 250W Motor

Item Type: Electric Bike Modification Kit
Gross Weight: 977g / 34.5oz
Controller Parameters:
Controller Material: Aluminum Alloy
Maximum Current: 15±1A
Rated Current: 7A
Voltage: DC 36V 48V
Speed Setting: 1-4.2V dual mode
Brake Input: low level
Low Voltage Protection: DC 30 40±0.5V
Applicable Motor: 250W
Panel Parameters:
Panel Material: PC
Model: LCD5
Applicable Handlebar Installation: 22.2mm diameter handlebar
Voltage: 24V 36V 48V
Interface: 5pin
Instrument Display Functions Description: cycling time display, cycling speed display, cycling mileage display, power assisted gear display, power indicator, fault coding prompt, headlight display, motor running power, 6km/h power assisted promotion function, etc
Boost Magnetic Point Parameters:
Material: Plastic, Magnet
Voltage: DC 36V 48V
Line Length: Approx.100cm / 39.4in
Connector: 3 pin SM connector
20X Full Handle Parameters:
Material: Rubber
Voltage: DC 24V 36V 48V 60V 72V
Line Length: Approx.180cm / 70.9in
Connector: 3 pin SM connector
Installation Position: right
QD252 Headlamp Parameters:
Material: Plastic, Copper
Voltage: DC 12V 24V 36V 48V 60V 72V
Line Length: Approx.180cm / 70.9in
Connector: 2 pin SM connector

Features

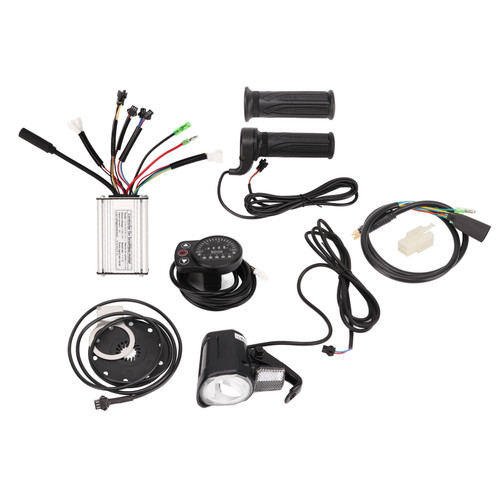

1、Complete Kit: The kit includes 15A sine wave controller, LCD5 panel, 10B power sensor, 20X throttle handle, QD252 headlamp and 600mm male motor adapter cable, which can be used alone or in combination.
2、Application: This kit is applicable to 36V 48V 250W motor, which can be used for the modification of electric bike, electric scooter, etc. and the replacement of damaged parts, you can modify and use it according to your own conditions.
3、15A Sine Wave Controller: Made of premium aluminum alloy shell with notch design, which has good heat dissipation performance, low noise, premium wire, and is durable.
4、LCD5 Panel: Adopts common interface, the shell uses PC, provides you with various bike control and digital display functions of bike status, display the riding time, speed, mileage, power assisted gear, power indicator, fault coding prompt, headlight display, motor running power, 6km/h power assisted push function, etc., so that you can read data when riding, and help you master the riding dynamics at any time, the screen is clear, and the buttons are easy to operate.
5、Easy Installation: The modified parts are easy to install and use, the instrument and 20X full turn handle are equipped, which are suitable for 22.2mm handlebars.

Package List

1 x Controller

1 x Controller Wiring Diagram

1 x Rotating Handle

1 x Handle Sleeve

1 x Panel

1 x Panel Instruction

1 x Headlight

1 x Booster Sensor Magnetic Disc

1 x Boost Sensor Connecting Wire

1 x Male Motor Connecting Wire

1 x Accessory
