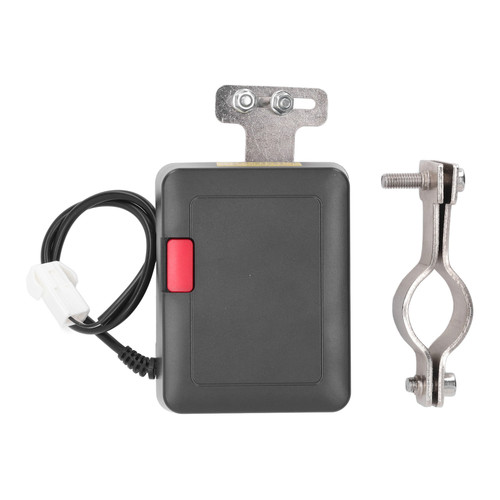

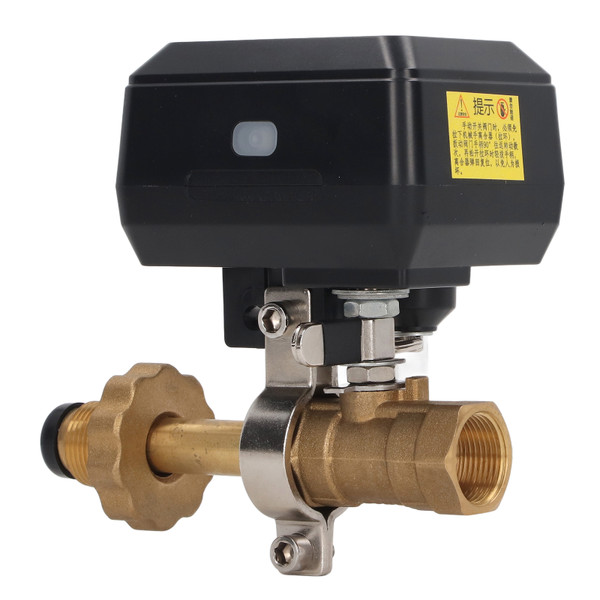

Electric Valve Controller Sensitive Automatic Manual Pipeline Ball Valve Controller DC12V

Item Type: Electric Valve Controller
Material: ABS, Brass
Purpose: Widely used for automatic control of gas pipeline ball valve, gas cylinder ball valve, various connection alarms, other gas and liquid valves
Basic Parameters:
Rated Voltage: DC12V
Working Voltage: DC8V-16V
Rated Power: 100mA
Working Current: 20mA-300mA
Rated Power: 1.2W
Working Power: 0.24W-3.6W
Valve Pressure: 1.5MPa
Valve Specification: 4 minutes, 6 minutes, 8 minutes, 1 hour, 1.25 hours, 1.5 hours
Automatic Valve Closing Time: 6 to 20 seconds
Electric Valve Opening Time: 6 to 20 seconds
Insulation Resistance: Greater than 20MQ
Withstand Voltage: DC500V

Features

1、MAIN USE: The valve controller is mainly used in places where combustible gas (such as liquefied petroleum gas, natural gas, biogas, etc.) may leaks, to detect whether the gas leaks, and to ensure crowd safety.
2、SENSITIVE: The valve controller adopts semiconductor sensor, possesses premium stability and small sensitivity drift performance.
3、EASY TO INSTALL: No need to change the original configuration of the gas pipeline, which can be installed and put into use quickly.
4、AUTO, MANUAL: The valve controller supports 2 operating methods, auto and manual. In case of alarm, the main valve at home is automatically closed by the controller and the power supply is completely cut off. During power failure and maintenance, the valve can be opened manually to double the safety.
5、ABS MATERIAL: Made of premium ABS material, the controller has a insulated, flame retardant shell, ensures a long life span.
6、WIDE APPLICATION: The controller is widely used for automatic control of gas pipeline ball valve, gas cylinder ball valve, various connection alarms, other gas and liquid valves.

Package List

1 x Electric Valve Controller

1 x Manual
