Product Overview

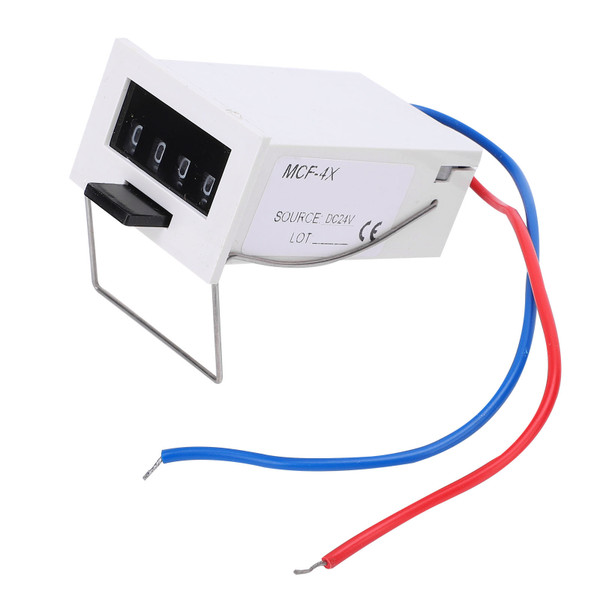

Item Type: Electromagnetic Pulse Counter
Material: ABS
Model: MCF-4
Counting Range: 0-9999
Counting Speed: 20 times/s
Indication Error: <1x0, 00001
Use Environment Temperature: -20℃-50℃ Relative Temperature: <85%
Power: 1.5W
Back to 0 Method: Press to return to 0
Material: ABS
Model: MCF-4
Counting Range: 0-9999
Counting Speed: 20 times/s
Indication Error: <1x0, 00001
Use Environment Temperature: -20℃-50℃ Relative Temperature: <85%
Power: 1.5W
Back to 0 Method: Press to return to 0
Features
1、After the electrical signal is input, a suction force is generated in the electromagnet, which causes the armature to drive the escapement, and drives the number wheel to rotate for decimal counting.
2、Can be combined with secondary instrument to form a digital display instrument, which is very practical
3、Widely used to count various electric pulses in various industries such as petroleum, chemical, textile, machinery, mining, national defense, agriculture, food, printing and so on.
4、Electromagnetic counter is used to record the accumulation of electric pulse signal times.
5、Made of high‑quality materials, strong and durable, has a long service life.
Package List
1 x Electromagnetic Pulse Counter
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.73 Inch |
| Height | 1.56 Inch |
| Length | 3.51 Inch |
