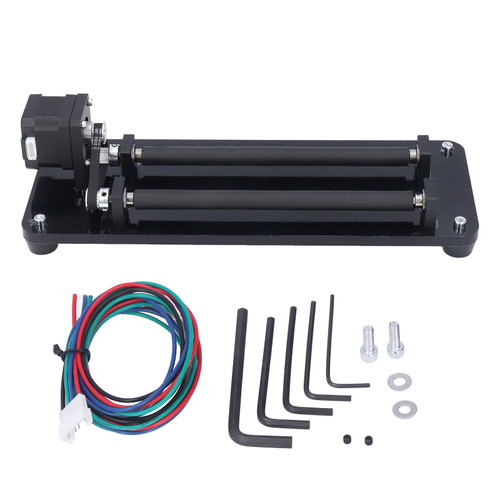

Engraver Y Axes Laser Roller Engraving Module with Auxiliary Heightening Column Rotary Roller Engraving Module Height 150mm / 5.9in

Item Type: Laser Roller Engraving Module
Material: Aluminum alloy
Motor: For Nema 17 stepper motor
Model: 17HS4401S
Step Angle: 1.8°±0.09°
Rated Voltage: DC3.6V
Rated Current: DC 1.5A/phase
Holding Torsion: ≥420mN.M
Maximum No Load Start Frequency: 1900PPS

Features

1、Pre Installed Processing: This roller engraving module is pre installed processing, easy to set up and can be plug and play.
2、Heightening Column: This roller engraving module comes with an auxiliary heightening column that helps you adjust the desired height or reposition the base to accommodate the required clearance of the roller.
3、Stepper Motor: The module is suitable for most desktop laser engraving machines and supports for LaserGRBL, for LightBurn, etc. With 34mm stepper motor.
4、Aluminum Alloy: Our roller engraving module can be adjusted in width, 5 steps, for use in the range of 20 to 80mm diameter. The whole is made of aluminum alloy, which is beautiful and practical.
5、Applicable Scenarios: Our roller engraving module can be used to engrave cylindrical objects such as pens and cups, helping you to enhance your work efficiency.

Package List

4 x Aluminum Washers M3

8 x Aluminum Washers M4

4 x Aluminum Washers M5

2 x 2020 Section L200mm

4 x Flange Bearing

2 x Rollers

4 x Timing Pulley Fixing Plate

1 x Motor Side Plate

1 x Side Plate

1 x 20 Tooth Timing Pulley Bore 5mm

2 x 20 Tooth Timing Pulley Bore 6mm

1 x 42 Stepper Motor

1 x Rubber Timing Belt

3 x Motor Wire

2 x Limit Ring

1 x Idle Gear

12 x Auxiliary Heightening Column

22 x Screw

1 x Accessory

13 x Nut

2 x Spacer

6 x Wrench

1 x Silicone Pad(4Pcs)

1 x Instruction Book
