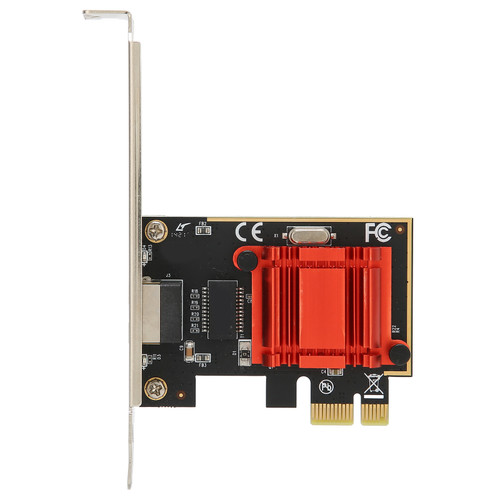

Ethernet Network Card PCI Express X1 2.5GT/s RJ45 Port 10/100/1000Mbps Gigabit Ethernet Card for Desktop Server

Item Type: Ethernet Network Card
Material: Printed Circuit Board
Applicable Network: Gigabit Ethernet
Primary Controller: JL82575EB
Bus Type: PCI Express X1, 2.5GT/s
Medium Interface: Copper Cable, RJ45
Transmission Rate: 10/100/1000Mbps
Network Topology: 10BASE T/ 100BASE TX/ 1000BASE T, IEEE 802.1Q VLANs IEEE 802.3z, IEEE 802.3, IEEE 802.3x, IEEE 1588, IEEE 802.3az Energy Efficient Ethernet (EEE)
Management Functions: IPMI Delivery via SMBus or NC SI, iSCSI Boot, WoL, PXE Remote Boot, VLAN Filtering.
Operating System: Suitable for FreeBSD, for VMWare ESXi, for Win 7, for Server 2012, for Server 2008, for Win 8, for Win 8.1, for Server 2016, for Win 10.
Operating Temperature: 0 to 55℃
Storage Temperature: Minus 40 to 70℃
Storage Humidity: 90% Non Condensing, Relative Humidity at 35℃

Features

1、Quad Port: This gigabit Ethernet card with 2.5GT/s quad port adopts PCI Express x Gen 2.1, suitable for FreeBSD, for VMWare ESXi, for Win 7, for server 2012, for server 2008, for Win 8, for Win 8.1, for server 2016, for Win 10.
2、Expandable iSCSI: This Ethernet network card provides expandable iSCSI performance and economical Storage Area Networking connection.
3、Network Topology: 10BASE T/ 100BASE TX/ 1000BASE T, IEEE 802.1Q VLANs IEEE 802.3z, IEEE 802.3, IEEE 802.3x, IEEE 1588, IEEE 802.3az Energy Efficient Ethernet (EEE).
4、Management Function: This PCIe Ethernet card supports IPMI delivery via SMBus or NC SI, support iSCSI boot, WoL, PXE remote boot, VLAN filtering.
5、I/O Virtualization: This PCIe network adapter with flexible I/O virtualization can realize port partitioning of virtual ports and Quality of Service (QoS) power management features, including Energy Efficient Ethernet (EEE) and DMA consolidation to boost rates and reduce power consumption.

Package List

1 x Ethernet Network Card

1 x Short Baffle

1 x User Manual

1 x CD
