FHD USB Microscope Camera 41MP Microscope Camera with 180X C Mount Lens for Industry Phone PCB WeldingUS Plug

Item Type: Microscope Camera
Material: aluminum alloy
Lens Size: Approx. 180mm x 50mm / 7.09 x 1.97in
Uses: Widely used in microelectronics, molds, accurate machinery, jewelry, watches, accessories, fingerprint identification, ticket identification, printing, mobile phone repair, archaeology, biological anatomy, school teaching and other fields.
Camera Model: HY-1137
Sensor: 41MP CMOS
Optical Format: 1/2.3in
Pixel Size: 1.335μm x 1.335μm
Interface: HD Multimedia Interface (Type A). USB (Type B). Memory card
HD Multimedia Interface Image Resolution: 41MP
Video Recording Resolution: 2K at 30FPS 1080p at 60FPS
HD Multimedia Interface Resolution: 1920 x 1080p 60FPS
Can be output simultaneously with USB
HD Multimedia Interface Ratio: support 4:3, 16:9, 16:10 screen
USB2.0 (drive free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 410 at 30FPS
AWB: WB color correction/automatic/manual
Independent setting of R.G.B value
Exposure: automatic/manual, AE value can be set
Cross Line: 8 lines, color, width and position can be set
Scale Mark Line: 2
Dotted Line: 2 lines. Color, width, position can be set
Sharpness, Contrast, Color Enhancement: support
Mono Negative Film: support
Mirror: horizontal and vertical mirroring
Language: English/Simplified Chinese
Digital Zoom: support
Infrared Remote Control: support
Power Consumption: maximum 0.15W 12V, 0.12A
Lens interface: C/CS port
180X C-mount lens
Working Distance: 95mm
Zoom C-mount Lens
0.5X C-mount Adapter
Zoom ratio: 6.5:1
Objective Magnification Power: 0.7-4.5X (approximately 10-180X display)
(180 times the maximum working distance 11.5CM)
Remote Control Battery Type:1 x button battery CR2025 (battery not included)

Features

1、41MP camera, which supports HD Multimedia Interface and USB2.0 dual output to meet the needs of different scenarios
2、Equipped with 180X C mount lens for industrial microscope camera, large magnification, clear vision
3、Made of high quality aluminum alloy shell, durable, light weight, convenient and portable, long life
4、Support multiple systems, support for WindowsXP/7/8/10 system, high compatibility, meet different needs
5、It can be used for education, scientific research, laboratory, demonstration, maintenance and inspection

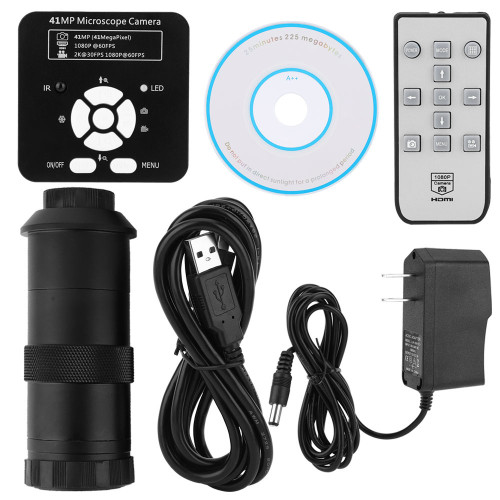

Package List

1 x Microscope Camera

1 x Lens

1 x HD Multimedia Interface Cable

1 x USB Cable

1 x Power Supply

1 x Remote Control(battery not included)

1 x Software CD

1 x Manual
