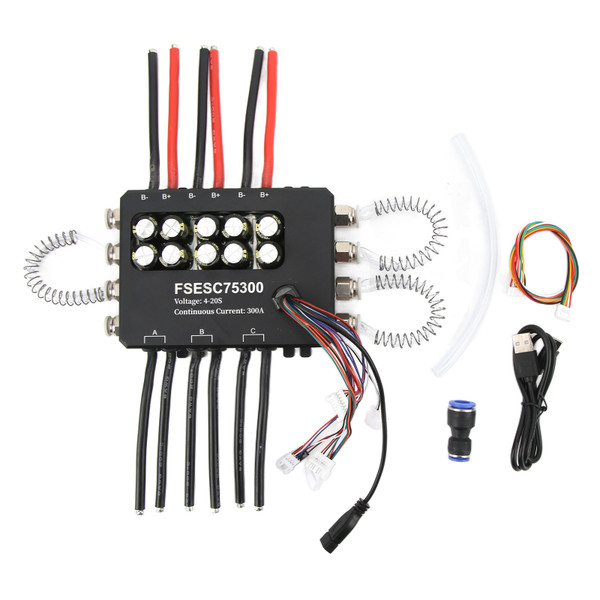

FLIPSKY ESC Speed Controller Aluminum Substrate Various Control Modes RC Car ESC for Robot 14‑84V

Item Type: ESC Speed Controller
Material: Aluminum alloy
Continuous Current: 50V, 300A, 75V, 200A
Maximum Current: 350A
Firmware Upgrade: Support USB online firmware upgrade
EPRM: 150000
Cable: 8AWG
BEC: 5V, 1A output
Support Sensors: ABI, HALL, AS5047, AS5048A
Communication Port: USB, CAN, UART, SPI, IIC
Control Communication Mode: Support PPM, ADC, NRF, UART
Support Mode: DC, brushless DC, magnetic field directional control (sine curve)

Features

1、VARIOUS CONTROL MODES: This ESC controller supports multiple control modes such as current duty cycle, speed and PID control modes.
2、FAST HEAT DISSIPATION: The aluminum substrate material of this ESC controller is extremely effective in heat dispersion in the circuit and increases heat dissipation.
3、ALUMINUM ALLOY SHELL: The aluminum housing of the ESC controller provides protection against the entry of foreign objects.
4、EXCELLENT PERFORMANCE: The CPU adopts STM32F405 with main frequency of 168MHz and architecture sensor with DSP function or sensorless operation with stable performance.
5、WIDE APPLICATION: This ESC controller is suitable for robotic arms, robots, combat robots and DIY off road vehicles, etc.

Package List

1 x ESC Speed Controller

1 x Hall Cable

1 x USB Cable

1 x Pipe

1 x Pipe Adapter

1 x Instruction
