Product Overview

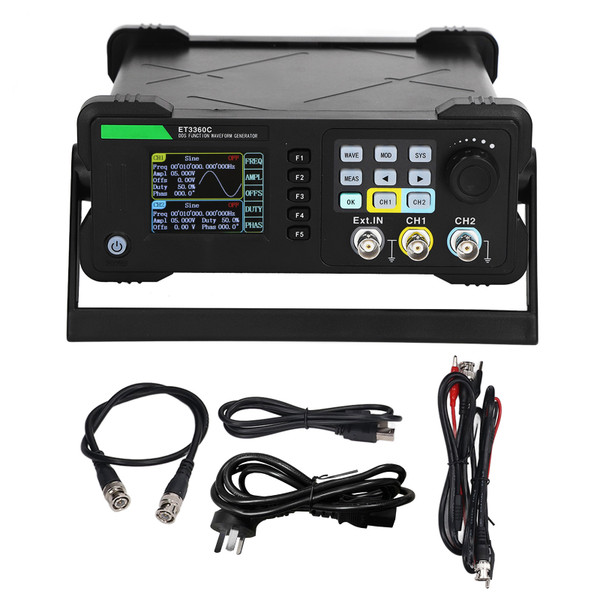

Item Type: Function Generator
2.4in 320x240TFT LCD screen, clear graphical interface;
Support English and Chinese menus;
2 channels are independent of each other and have the function of phase synchronization.
200MSa/S sampling rate, 13 bit vertical resolution, 8k storage depth;
Built in 5 basic waveforms and 32 arbitrary waveforms;
Waveform storage; Support internal storage of 50 groups of user defined editing waveform;
Edge time adjustable pulse output;
Internal AM, FM, PM modulation function;
Internal or external ASK, FSK, PSK modulation function;
Dual channel output, the highest output frequency 60M;
Output of linear or logarithmic sweep and burst(pulse train) waveforms;
With 100MHz high accuracy frequency meter and 32 bit counter;
Standard USB Device interface;
Equipped with multifunctional arbitrary waveform editing software.
Frequency Characteristics:
Model: ET3360C
Sine Wave: 1 μ Hz~ 60MHz
Square Wave: 1 μ Hz ~ 15MHz
Triangular Wave: 1 μ Hz ~ 15MHz
Pulse Wave: 100 μ Hz ~ 6MHz
Any Wave: 1 μ Hz ~ 6MHz
Frequency Resolution: 1 μ Hz
Frequency Accuracy: ± 20ppm
Frequency Stability: ± 1ppm/3h
Waveform Characteristics:
Waveform Type: Sine wave, square wave, triangle wave, pulse, noise, arbitrary wave (including DC). There are 32 arbitrary waves and 50 user-defined waveforms
Waveform Length: 8192 points
Waveform Sampling Rate: 200MSA/s
Waveform Vertical Resolution: 13 Bits
Sine Wave Characteristics:
Sine Wave:
Harmonic Suppression System: ≥ 45dBc (<1MHz); ≥ 40dBc(1MHz~20MHz)
Total Harmonic Distortion: <0.8% (20Hz~20kHz, 0dBm)
Square Wave Signal Characteristics:
Square Wave:
Rise/fall Time: <20ns
Overshoot: <5%
Duty Cycle: Frequency<100kHz: 1%~99%; 100kHz ≤ Frequency<5MHz: 20%~80%; 5MHz ≤ Frequency: 40%~60% (0.1% resolution)
Pulse Wave Characteristics:
Pulse Wave:
Pulse Width: Minimum 20ns; 1ns resolution
Edge Jump Time: Minimum 20ns;
Overshoot: <5%
Jitter: 6ns+0.1% cycle
Sawtooth Wave Characteristics:
Sawtooth Wave:
Linearity: ≥ 98% (0.01Hz~10kHz)
Symmetry: 0.0~100.0% (resolution 0.1%)
Output Characteristics:
Amplitude:
Amplitude Range: Frequency < 10MHz: 2mVpp~20Vpp; 10MHz ≤ Frequency < 30MHz: 2mVpp~10Vpp; 30MHz ≤ Frequency: 2mVpp~5Vpp
Amplitude Resolution: 1mV
Amplitude Accuracy: 1% of the set value + 2mVpp (1kHz sine wave, 0 offset, >10mVpp)
Amplitude Flatness (1Vpp relative to 1k sine wave): ± 0.4dB<10MHz; ±1.0dB ≥10MHz
Output Impedance: 50 Ω ± 10% (typical)
Protection: All signal output terminals can work within 60s under load short circuit
Offset:
Output amplitude>0.1V; 2mV<output amplitude ≤ 0.1V
Offset Resolution: 1mV
Phase Characteristics:
Phase Adjustment Range: 0~359.9°
Phase Resolution: 0.1°
External Measurement Function:
Frequency Meter Function: Frequency Measurement Range: 1Hz~100MHz; Gate Time: 0.01s~10s continuous adjustment
Counter Function: Counting Range: 0~4294967295; Counting Method: Manual
Coupling Mode: DC or AC
Pulse Width Measurement: 1ns Resolution, maximum 20s
Period Measurement: 1ns Resolution, maximum 20s
AM Modulation:
Output Channel: CH1 or CH2
Carrier Wave: Sine wave, square wave, sawtooth wave, pulse wave, arbitrary wave (excluding DC)
Modulated Wave: Sine wave, square wave, triangular wave, upper oblique wave, lower oblique wave
Modulation Frequency: 2mHz~20kHz
Modulation Depth: 0%~120%
FM Modulation:
Output Channel: CH1 or CH2
Carrier Wave: Sine wave, square wave, sawtooth wave, pulse wave, arbitrary wave (excluding DC)
Modulated Wave: Sine wave, square wave, triangular wave, upper oblique wave, lower oblique wave
Modulation Frequency: 2mHz~20kHz
Frequency Offset: 0~Maximum carrier frequency
PM Modulation:
Output Channel: CH1 or CH2
Carrier Wave: Sine wave, square wave, sawtooth wave, pulse wave, arbitrary wave (excluding DC)
Modulated Wave: Sine wave, square wave, triangular wave, upper oblique wave, lower oblique wave
Modulation Frequency: 2mHz~20kHz
Phase Deviation: 0°~360°
ASK Modulation:
Output Channel: CH1 or CH2
Carrier Wave: Sine wave, square wave, sawtooth wave, pulse wave, arbitrary wave (excluding DC)
Source: Internal or external
Modulation Wave: Square wave with 50% duty cycle
Modulation Rate: 2mHz~1MHz
Modulation Amplitude: 0~Carrier amplitude
FSK Modulation:
Output Channel: CH1 or CH2
Carrier Wave: Sine wave, square wave, sawtooth wave, pulse wave, arbitrary wave (excluding DC)
Source: Internal or external
Modulation Wave: Square wave with 50% duty cycle
Modulation Rate: 2mHz~1MHz
Frequency Hopping: Carrier frequency range
PSK Modulation:
Output Channel: CH1 or CH2
Carrier Wave: Sine wave, square wave, sawtooth wave, pulse wave, arbitrary wave (excluding DC)
Source: Internal or external
Modulation Wave: Square wave with 50% duty cycle
Modulation Rate: 2mHz~1MHz
Modulation Phase: 0°~360°
Frequency Sweep Function:
Sweep Channel: CH1 or CH2
Frequency Sweep Type: Linear sweep, logarithmic sweep
Frequency Sweep Time: 1ms~999.999s
Setting Range: Start point and end point can be set arbitrarily
Sweep Direction: Forward, reverse, round trip
Trigger Source: Internal, external, manual
Trigger Characteristics:
Output Channel: CH1 or CH2
Carrier Wave: Sine wave, square wave, sawtooth wave, pulse wave, noise, arbitrary wave (excluding DC)
Pulse Count: 1~1048575 or unlimited, gated
Start Or Stop Phase: 0~360°
Internal Cycle: 1 μ s~500s
Door Control Source: External
Trigger Source: Internal, external, manual
Coupling Mode: DC or AC
Pulse Width: >100ns
Reaction Time: <500ns (pulse train)< ten μ S (sweep frequency)
Signal Range: ± 2.5V ac+dc

Features

1、UPGRADE SIGNAL PERFORMANCE: Dual channel DDS arbitrary waveform generator adopts large scale FPGA integrated circuit and high speed MCU microprocessor, which greatly enhances signal stability. Sinusowave frequency output up to 60MHz, sampling rate up to 200MSa/s, 13 bit vertical resolution, 8k storage depth, more waveform data can be obtained per unit time, thus making the waveform more accurate
2、0~359.9 DEGREE PHASE DIFFERENCE ADJUSTABLE: Function generator equivalent double channels can output the same or different function signals or arbitrary waveform signals at the same time; All parameters can be adjusted independently. The phase difference between the two channels is continuously adjustable from 0 to 359.9 degree
3、DRAW ARBITRARY WAVEFORM: Built in 5 kinds of basic waveform and 32 kinds of arbitrary waveform, waveform storage; Support internal storage of 50 groups of customized waveforms. Any waveform can be drawn with one click and downloaded to the signal generator
4、SOFTWARE CONTROL: This is a new version of the signal generator, support computer software control. After downloading and installing the software, connect the signal generator through the data cable, you can view all the relevant data on the computer, and set all the functions through the computer. All operations are visually displayed in the upper computer software, so that you can quickly adjust the parameters, greatly improve the efficiency of the instrument
5、HIGH ACCURACY: The DDS signal generator can use sine wave, square wave, triangle wave or any wave to generate pulse train, pulse period number is continuously adjustable between 1 and 1048575. And the pulse bias is continuously adjustable; The pulse amplitude is continuously adjustable, accurate to 0.01V
6、WIDELY USED: The upgraded function generator not only support firmware update, but also has secondary development function. Can be widely used in daily use, electronic engineering, biotechnology, medical, automotive and other industries
