FY107C 1000V Intelligent Automatic Multimeter High Accuracy Small Portable AC DC Voltage Resistance Tester Meter

Item Type: Multimeter
Material: ABS
Color: As shown in the picture
Model: FY107C
Power Supply: AAA 1.5Vx2 (not included)
Application: Electricity numerical test
Working Altitude: <2000m
Working Temperature: 0-40℃
Storage Temperature: -10-60℃
Temperature Coefficient: <0.1 x accuracy/℃
Sampling Time: 3 times/sec
Display: 3.3 inch 6000 count LCD
Over Range Indication: OL
Low Battery Indicator: Screen displays the battery symbol
Polarity Indication:-
Data Hold/Flashlight
1. The current reading can remain displayed.
2. Change the range or press the "HOLD" button again to exit the data hold mode
1. Press the "HOLD" button, the current reading remains in the display.
2. Press the "HOLD" button again to return to the normal test mode
3. Long press the "Flashlight" button to turn on the flashlight. Long press the "Flashlight" button again to turn off the flashlight.
NCV and LIVE measurement
1. Press the "NCV" key to start NCV measurement.
2. Press the button again to start real-time measurement.
Automatic measurement
1. After turning on, the machine automatically switches to automatic mode.
2. Connect the black test lead to the COM jack and the red test lead to the INPUT jack.
3. Connect the lead to the source or load under test.
Resistance
1. When measuring resistance, short-circuit the two test leads first, and find out the resistance value of the test leads first. Remember to subtract this resistance value from the reading
2. In the 10M range, it may take a few seconds to get a stable reading. High resistance measurement is normal
3. When the meter is open or the resistance is too large, the display shows "OL", indicating that the measured resistance is out of range.
NCV Test
1. Press the NCV key to bring the instrument close to the object to be measured.
LIVE Test
1. Press the NCV button twice. "LIVE" appears on the display.
2. Connect the red test lead to the INPUT jack, and insert the test lead into the socket.
3. If the display shows "LIVE", it is LIVE.
Diode Test
1. After power on, turn the SEL key to switch to the diode test mode.
2. Insert the black test lead into the COM jack and the red test lead into the INPUT jack.

Features

1、Main Features: FY107C is a 6000 count handheld digital multimeter with quick response, large display, light weight and easy to read.
2、Long Service Life: Realize the voltage intelligent anti burning, the test lead can be manipulated freely, all kinds of test pens can be replaced, and the service life is longer.
3、Main Functions: Automatic identification, neutral live wire judgment, true effective value, capacitance, diode, AC and DC voltage, frequency, resistance, on off buzzer, NCV voltage detection.
4、Large LCD Screen: Large LCD screen display with backlight, 6000 count display, clear reading, with flashlight function, it can be used even in the dark.
5、Wide Applications: Compact and portable, easy to carry, widely applicable, it is an ideal measuring instrument for professionals, schools, enthusiasts and families.

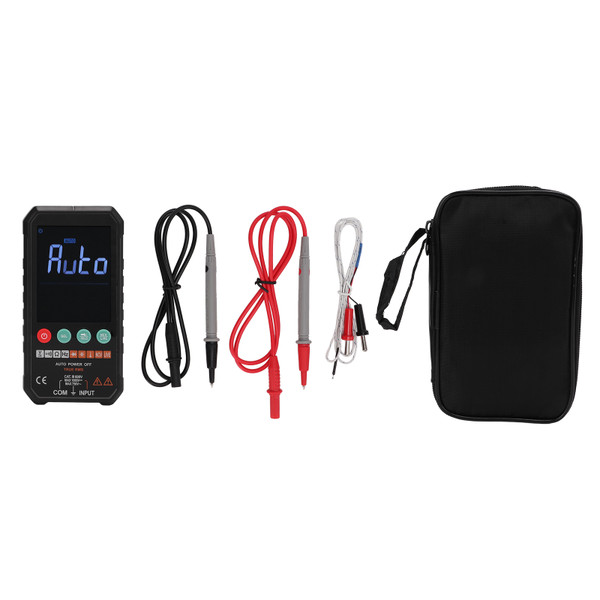

Package List

1 x Multimeter(Battery Not Included)

2 x Test Lead

1 x Thermal Contact

1 x Tool Bag

1 x Manual
