Product Overview

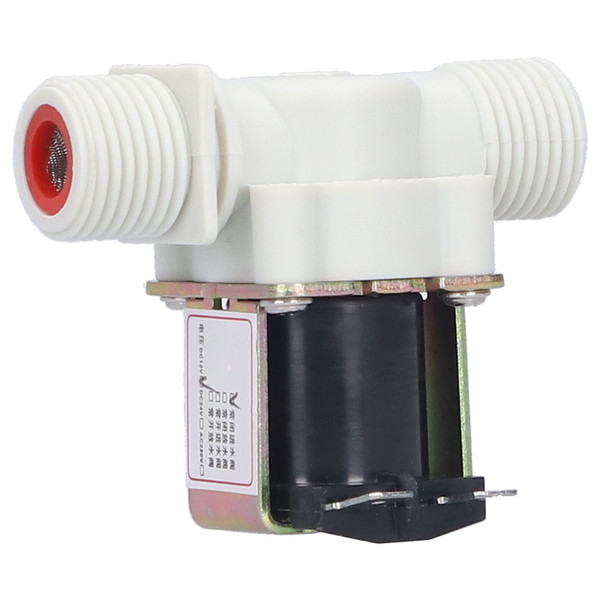

Item Type: Electric Solenoid Valve
Material: Nylon + stainless steel
Model: FPDJ-23
Thread Interface: G1/2
Water Valve Type: Normally closed water inlet valve
Inner Diameter/Outer Diameter: Approx. 12mm / 0.5in, 20mm / 0.8in
Working Pressure: 0.02~0.8MPa
Thread Length: Approx. 16mm / 0.6in
Coil Resistance: 27.7Ω
Material: Nylon + stainless steel
Model: FPDJ-23
Thread Interface: G1/2
Water Valve Type: Normally closed water inlet valve
Inner Diameter/Outer Diameter: Approx. 12mm / 0.5in, 20mm / 0.8in
Working Pressure: 0.02~0.8MPa
Thread Length: Approx. 16mm / 0.6in
Coil Resistance: 27.7Ω
Features
1、Normally closed water inlet controller has stable performance, sturdiness and durability, safety and reliability
2、Solenoid valve come with high sensitivity, quality assurance, and beautiful appearance, very practical
3、The product adopt direct‑acting diaphragm structure, no pressure start, expanding its application field
4、This normally closed inlet valve using threaded interface design, possess simple and convenient installation
5、Made of imported stainless steel springs and good‑quality materials. The normal operation is not less than 200,000
Package List
1 x Electric Solenoid Valve
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.51 Inch |
| Height | 1.95 Inch |
| Length | 5.46 Inch |
