Product Overview

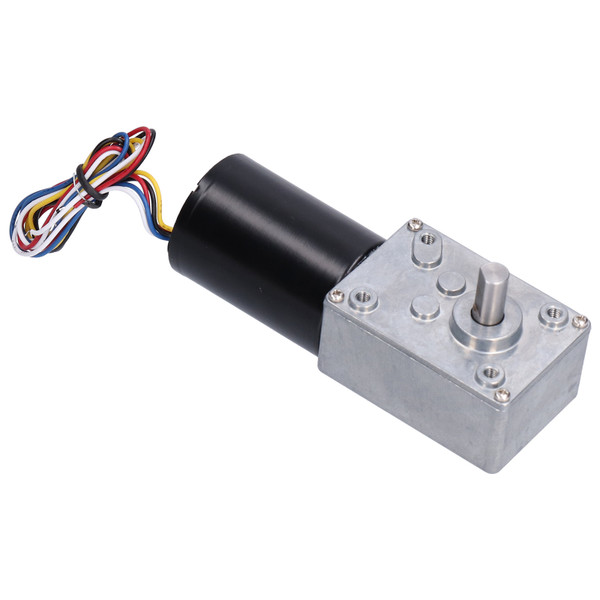

Item Type: Gear Motor
Material: Zinc alloy, copper, steel
Uses: Industrial
Shaft Length: Approx. 15mm / 0.6in
Shaft Diameter: Approx. 8mm / 0.3in(D shaped shaft)
Gear Box Size(length x width): Approx. 58 x 40mm / 2.3 x 1.6in
Motor Diameter: Approx. 36mm / 1.4in
Cable Length: Approx. 280mm / 11in
Reduction ratio (change ratio)
17
31
50
100
200
290
500
No load speed(rpm)
235
130
80
40
20
14
8
Rated torsion(Kg.cm)
2.5
4.5
7.3
30
29
10
60
Rated speed(rpm)
180
100
60
30
15
10
6
Maximum torsion(Kg.cm)
4.3
8
12.5
25
51
70
70
Material: Zinc alloy, copper, steel
Uses: Industrial
Shaft Length: Approx. 15mm / 0.6in
Shaft Diameter: Approx. 8mm / 0.3in(D shaped shaft)
Gear Box Size(length x width): Approx. 58 x 40mm / 2.3 x 1.6in
Motor Diameter: Approx. 36mm / 1.4in
Cable Length: Approx. 280mm / 11in
Reduction ratio (change ratio)
17
31
50
100
200
290
500
No load speed(rpm)
235
130
80
40
20
14
8
Rated torsion(Kg.cm)
2.5
4.5
7.3
30
29
10
60
Rated speed(rpm)
180
100
60
30
15
10
6
Maximum torsion(Kg.cm)
4.3
8
12.5
25
51
70
70
Features
1、High Torsion, Low Noise: 36mm good quality steel pipe electricity, possess small size, low noise, high torsion and long life
2、Ball Bearing Design: Gear motor adopt ball bearing design, enhances shaft friction resistance, very practical
3、Multi Function: Built in sensory drive function, free switching function of CW and CCW, wire control brake function, pulse width PWM speed control function, FG signal speed measurement function
4、Over Current, Voltage and Temperature Protection: Over current protection function for 3A, over voltage protection function for 30V, over temperature protection function for 80℃
5、Automatic Start Function: Electric gearbox motor come with locked rotor protection, and automatic start function
Package List
1 x Gear Motor
Package Weight and Dimension
| Weight | 0.85 lb |
| Width | 2.73 Inch |
| Height | 1.95 Inch |
| Length | 5.85 Inch |
