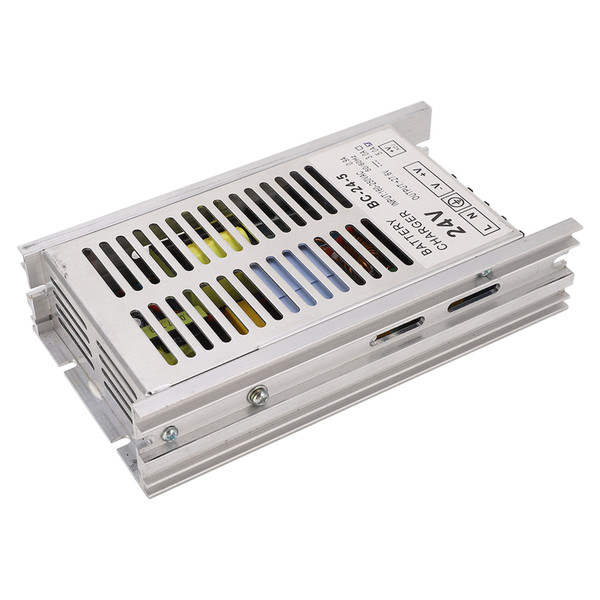

Generator Battery Charger Automatic Float Charging Intelligent Genset Battery Charger AC 160‑

Item Type: Generator Battery Charger
Material: PCB, Stainless Steel
Model: BC 24 5
Input Frequency: 50 60Hz
Working Temperature: -40℃ to +50℃
Relative Humidity: 98% RH (Non Condensing)

Features

1、AUTOMATIC CHARGING: The charger allows to start motor to be started while charging the battery, automatically identifying the voltage level of the charged battery pack and charging.
2、CONSTANT CURRENT FAST CHARGING: When the voltage of the charged battery is lower than the set value (less than 24V), the charger could quickly charge the battery with the maximum constant current.
3、CURRENT LIMITING: When the charged battery is close to full charge (more than 24V), the charging current is automatically limited.
4、TRICKLE FLOAT CHARGING: When the voltage of the charged battery reaches the float charging set value (approximately 27.6V), the charger automatically switches to the float charging state, and charging at a current of 0.1 to 0.2A.
5、STROP CHARGING: When the voltage of the charged battery reaches the charging set value (28V), the charging output is automatically turned off.
6、OVERCURRENT AND SHORT CIRCUIT PROTECTION: The charger has comprehensive over current and short circuit protection. Due to its constant current characteristics, it will not be damaged in the event of a large battery capacity, load short circuit, or simultaneous starting of the starting motor during mains charging.

Package List

1 x Generator Battery Charger
