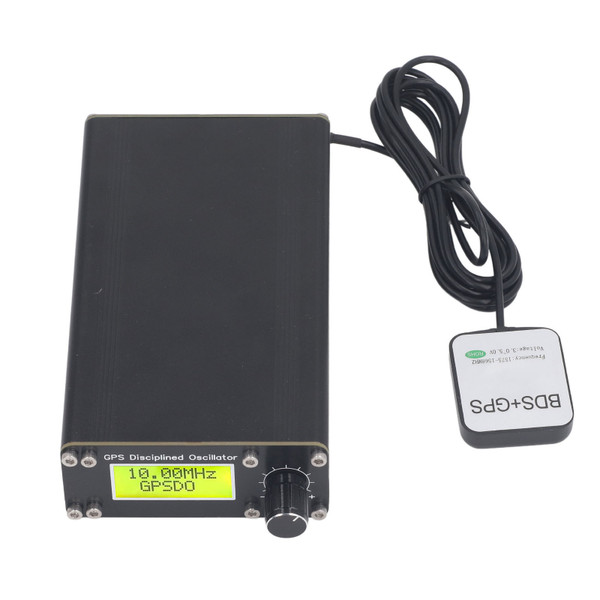

GPS Disciplined Oscillator OCXO 10MHz Square Wave Output GPSDO GPS Disciplined Clock DC12V

Item Type: GPS Disciplined Oscillator
Material: Aluminum Alloy
Power Supply Voltage: DC12V ±2V
Working Current: 650mA During Preheating, 350mA When Stabilized
Output Frequency: 10.0000000.000MHz ±0.001Hz
Output Waveform: Square Wave
Output Amplitude: -45dBm
Thermostatic Crystal: ISOTEMP OCXO 143-141 (Disassembled)
GPS Module: NEO 6M

Features

1、[Precise Control] Using 1PPS signal from GPS, the microcontroller compares it and outputs a 16Bit PWM to control the output accuracy of the constant temperature crystal, the frequency adjustment voltage of the constant temperature crystal is 0 to 5V, then a 1Bit PWM can control the output voltage to be 0.000076V.
2、[Versatile Applications] This GPS disciplined oscillator is suitable for high end audio decoders, instruments, frequency meters, signal sources, and any device with an external 10MHz reference input.
3、[User Friendly Design] Equipped with a display screen and an encoder on the front panel, this GPS disciplined clock provides real time status and easy setting adjustments.
4、[Comprehensive Connectivity] The back panel features 10MHz output interface, 1PPS output interface, GPS antenna interface, power switch, and 12V DC power supply interface, allowing seamless integration and operation.
5、[Compact and Portable] Despite its advanced functionality, this GPSDO maintains a small and portable size, making it easy to transport and use in various settings.

Package List

1 x GPS Disciplined Oscillator

1 x Antenna
