Grounding Resistance Online Detector Non Contact Ground Resistance Tester with GPRS Wireless Communication

Item Type: Grounding Resistance Online Detector
Material: PVC
Model: ETCR2800KB
Usage: Suitable for grounding of transmission line towers, meteorological lightning protection, petrochemicals, communications, substations, railway facilities, building warehouses, electrical equipment, etc.
Basic Parameters:
Function: Loop grounding resistance online monitoring, metal loop connection resistance online monitoring, grounding condition monitoring
CT Structure: Open and close
Resistance Range: 0.01Ω-100Ω
Resolution: 0.001Ω
Accuracy: ±2%rdg±3dgt (20℃±5℃, below 70%RH)
Overflow Indication: When the test value is greater than 100Ω, the LCD displays OLΩ
Alarm Indication: Sound and light alarm
Alarm Settings: Panel button settings, background settings
Working Temperature and Humidity: -20℃ to 55℃; 20%RH-90%RH
Temperature and Humidity Error: No more than 5%
Shifting: Automatic shifting
External Magnetic Field: <40A/m
External Electric Field: <1V/m
Single Measurement Time: About 0.5 seconds
Power Consumption: 12VDC 150mA Maximum

Features

1、Stable and Reliable: The built in sensor and circuit board of the detector are completely closed to ensure high accuracy, stability and reliability of long term online monitoring in the field or indoor
2、Non Contact Measurement: This detector conducts non contact online measurement through the ground wire, which does not affect the lightning protection grounding effect and the normal operation of the facility
3、GPRS Communication: This grounding resistance online detector adopts GPRS wireless communication to transmit data to realize remote online monitoring
4、Function: This earthing ground tester can detect in real time, has sound and light alarm, and automatically shifts gears
5、Usage: This monitor is suitable for grounding of transmission line towers, meteorological lightning protection, petrochemicals, communications, substations, railway facilities, building warehouses, electrical equipment, etc.

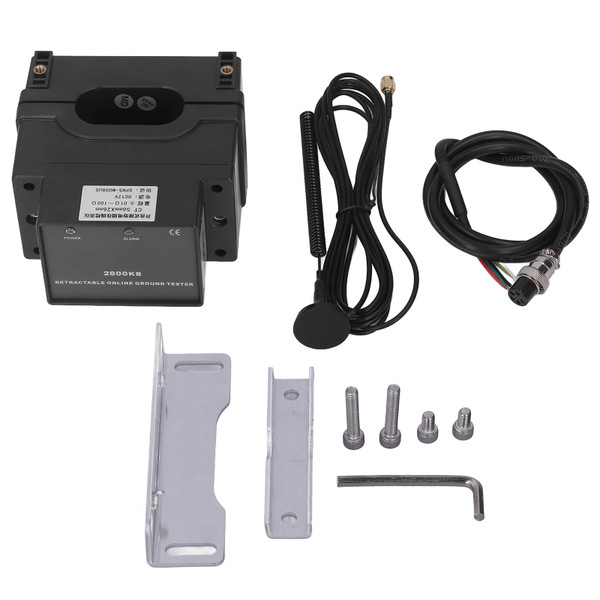

Package List

1 x Grounding Resistance Online Detector

1 x Plug Cable

1 x Antenna

2 x Hanger

4 x Hex Screw

1 x Hex Wrench
