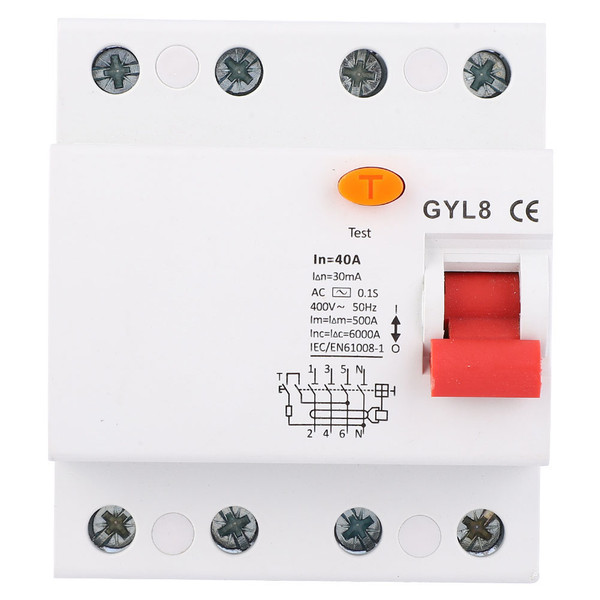

GYL8 4P 400VAC RCCB Residual Current Circuit Breaker Electric Leakage Protection (40A)

Features:
Specification:
Pole: 4P
Rated Frequency: 50/60Hz
Rated Sensitivity: 0.03A
Rated Residual On/Off Capability Im: 500(In=25-40A), 630(In=63A)
Short Circuit Current: 6000A
Disconnect Time: ≤0.1S
Electrical & Mechanical Life: 4000
Reference Temperature for Setting of Thermal Element: 30℃
Ambient Temperature: (daily average ≤ 35℃) -5~40℃
Storage Temperature: -25~70℃

Package List:
1 x Residual Current Circuit Breaker

Features

1、GYL8 Residual Current Circuit Breaker is suitable to the circuit of AC 50/60Hz, rated voltage for 2 poles and 400V for 4 poles, and rated current up to 63A.
2、When people come across the electric shock or the leakage current of the electrical network exceeds the fixed value, this product can cut off the fault current in short period so as to protect person and the equipments. It also can be used in the infrequ
3、The circuit breaker is suitable for industry, commerce, high-rise building, household and other kinds of places.
4、In compliance with IEC/EN61008.1. Protection rating IP20.
5、Bilateral busbar wiring capabilities to adapt to the wider use of premises.
