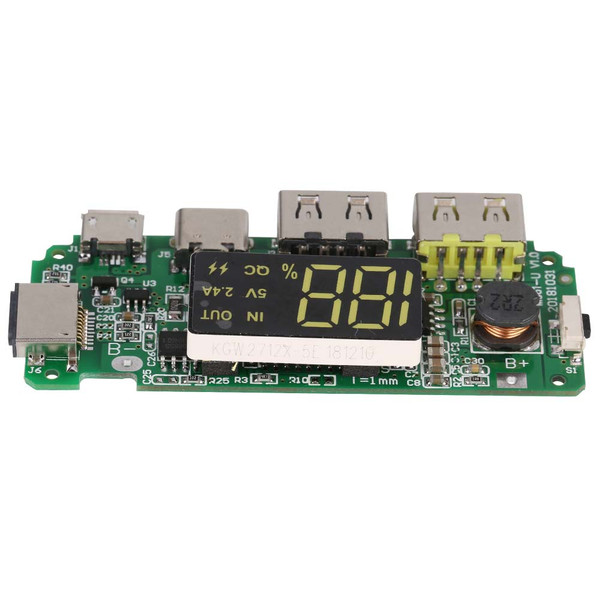

H961-U PCBA Printed Circuit Board Assembly 5V 2A

Features:
1. 100% brand new and high quality
2. Small body and stable performance
3. Portable backup power supply with an input matching 5.0V adapter to charge the internal battery
4. Press and hold the button after standby, LED digital display shows the battery
5. Widely used

Specification:
Condition: 100% Brand New
Model: H961-U
Item
Condition
Specification
                         Input Voltage
input Voltage B+ to B-
3.0-4.2V
Overcharge
Detection voltage
4.20±0.05V
 Release voltage
4.100±0.05V
 Detection delay time
<200 ms
Over discharge
Detection voltage
3.0±0.10V
 Release voltage
3.10±0.10V
 Detection delay time
<100 ms
Outputconstant current
constant current
2A
Short CircuitProtection
Short detection delay time
<50uS
ReleaseConditions
Cut off load
Normal current consumption
Normal current consumptionof PCM
Max 60uA
Stanby current consumption
Max 50uA
0V charger
allowed 0V change
Y

Suggest working conditions
max continuous charge/discharge current
1.5/2A
suggest working temperature
-5-45℃
IR resistance
 IR of PCM
≤65 mΩ
Weight: Approx. 15g / 0.5oz

Package List:
1 * PCBA(Printed Circuit Board +Assembly)


Features

1、100% brand new and high quality.
2、Small body and stable performance
3、Portable backup power supply with an input matching 5.0V adapter to charge the internal battery
4、Press and hold the button after standby, LED digital display shows the battery
5、Widely used
