Halogen Leak Detector Electronic Air Conditioner Refrigerant Tester Sensitive for Car

Item Type: Halogen Leak Detector
Material: ABS
Power Source: 2 x C alkaline batteries, 5000mAh (include batteries)
Maximum Sensitivity: R12, R22, R134a approved (14 g/year)
Limit Sensitivity: For halogen refrigerants, less than 7 g/year
Probe Life: about 2000 hours
Operating Temperature: 0 - 52℃
Battery Life: About 30 hours under normal use
Working Mode: Continuous, unlimited
Response Time: Instant
Reset Time: 1 second
Heat up Time: About 2 seconds
Function:
7-level sensitivity increases the sensitivity by 64 times, and the tricolor LEDs indicate the extent of leakage in a wide range in a progressive manner. It is also used to display sensitivity levels and battery power. Touch keyboard for all operations. The thin and long shape design greatly facilitates the use and maintenance of users. Indicator light is very convenient in the use of direct range.
Characteristic:
1. Microprocessor control, with advanced digital signal processing.
2. Multiple frequencies of sound alarm.
3. Three-color, seven-segment, 18-level leak level alarm.
4. Seven speed sensitivity adjustment can increase its sensitivity to 64 times.
5. Flexible probe can access hard-to-access areas.
6. Touch mode reset button and touch mode keyboard control.
Application:
1. Leak detection of other systems and storage/recovery containers. This product works on all halogenated refrigerants, including chlorine and fluorine.
Including but not limited to CFCs such as R12, R11, R500, R503, etc
HCFCs such as R22, R123, R124 R502, etc
HFCs, such as R134a, R404a, R125, etc
Can also detect other mixtures, such as AZ-50, HP62, MP39, etc
2. Detection of ethylene oxide leaks in hospital disinfection equipment (detection of halogen-carrying gases)
3. Test SF-6 in the high voltage circuit breaker
4. Detection of most gases containing chlorine, fluorine and bromine (halogen gases)
5. Test cleaners used on dry cleaning equipment, such as carbon tetrachloride
6. Detection of halogen gases used in fire extinguishing systems

Features

1、Leak detector adds some convenience features: seven levels of sensitivity increase sensitivity by 64 times, and a three‑color LED indicates the extent of leakage over a wide range in a progressive manner. It is also used to display sensitivity levels and battery power; Touch keyboard for all operations; The thin and long shape design greatly facilitates the use and maintenance of users; The indicator light is in the direct view range during use, very convenient.
2、SF6 qualitative leak detector has 30 years of leak detector manufacturing experience. As the stable and sensitive negative corona leak detector, we are proud to provide this tool. We put all our experience and years of customer feedback into this product, hoping to provide users everything: price, performance and reliability.
3、The core of this device is an microprocessor. Its digital signal processing technology makes it better than the control circuit and sensor head signal. In addition, the number of components used in the circuit is reduced by approximately 40%, resulting in improved reliability and performance. The microprocessor monitors the sensor head and battery voltage values in real time, up to 4,000 times per second, compensating for even the tiniest fluctuations in the signal pulsation.
4、The refrigerant gas leak detector can be used for leak detection of other systems and storage/recovery containers. This product works on all halogenated refrigerants, including chlorine and fluorine. Including but not limited to CFCs such as R12, R11, R500, R503, etc. HCFCs such as R22, R123, R124 R502, etc. HFCs, such as R134a, R404a, R125, etc.
5、Wide range of applications. Detection of ethylene oxide leaks in hospital disinfection equipment (detection of halogen‑carrying gases). Test SF‑6 in the high voltage circuit breaker. Detection of most gases containing chlorine, fluorine and bromine (halogen gases). Test cleaners used on dry cleaning equipment, such as carbon tetrachloride. Detection of halogen gases used in fire extinguishing systems.

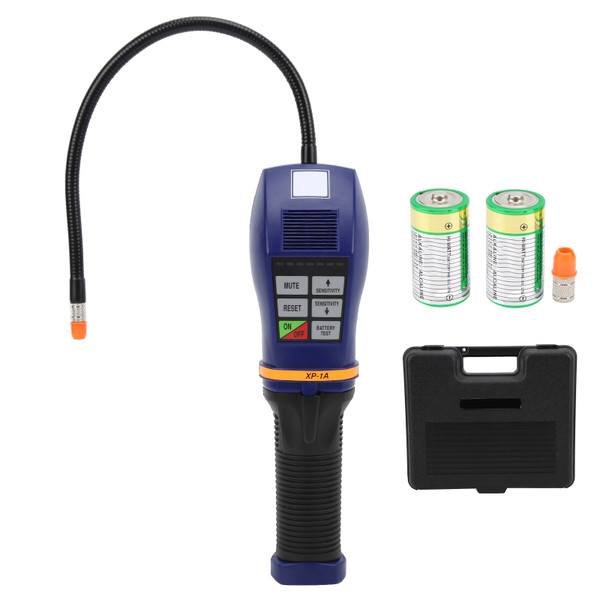

Package List

1 x Host

2 x C Battery

1 x Standby Probe

1 x Manual

1 x Storage Toolbox
