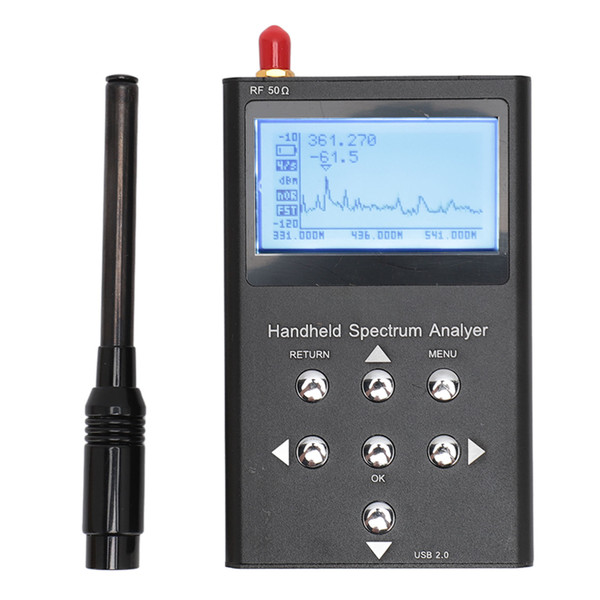

Handheld Spectrum Analyzer Multifunctional Single Antenna 240Mhz‑1G Portable Frequency Analyzer

Item Type: Handheld Spectrum Analyzer
Material: Aluminum Alloy
Battery: Polymer Lithium Ion Battery (Built In) Capacity: 1500mAh
Display Pixels: 128x64 Pixels
Antenna Connector: 1 Standard Sma 50 Ohm Connector, 1 For Sub Ghz Broadband Nagoya Na 773 Retractable Antenna
Amplitude Resolution: 0.5dbm
Dynamic Range: Left Sma Port (Wsub1g): -115dbm To 0dbm
Absolute Maximum Input Power: Left Sma Port (Wsub1g): +5dbm
Average Noise Level (Typical): -110dbm
Frequency Stability And Accuracy (Typical): +-10ppm
Amplitude Stability And Accuracy (Typical): +-6dbm
Frequency Resolution: 1khz
Resolution Bandwidth (RBW): Auto 3Khz To 600Khz
Frequency Range: Broadband Coverage Of All Popular Sub 1Ghz ISM Bands Including 315MHz, 433MHz, 868MHz And 915MHz, Also UHF TV, 70cm And 33cm HAM Radios, GSM And More. Covers Any Frequency From 240MHz To 960MHz
System Compatibility: PC For Windows Client Support For Windows Xp For Win7 32 And 64 Bit

Features

1、FEATURES: Spectrum analyzer is suitable for all ISM popular frequency bands. It is based on a highly integrated frequency synthesizer featuring high performance, compact size and low power consumption.
2、FREE FIRMWARE UPGRADE: Handheld spectrum analyzer features peak maximum and hold, normal, coverage, and average modes. Free firmware upgrades are provided and are open to community requested features.
3、LARGE CAPACITY LITHIUM BATTERY: High capacity Li ion battery for more than 16 hours of continuous operation, USB rechargeable. For Windows PC client is open source and can be connected to a PC using the USB C interface connector for additional functionality, PC for Windows client support for Windows Xp for Win7 32 bit and 64 bit.
4、SINGLE ANTENNA SPECTRUM ANALYZER: Handheld spectrum analyzer can be expanded with internal expansion modules for additional bands and features, with broadband coverage of all popular frequencies, with broadband coverage of all popular sub 1Ghz ISM bands including 315MHz, 433MHz, 868MHz and 915MHz, as well as UHF TV, 70cm and 33cm HAM radios, GSM and more.
5、FREQUENCY AREA: Spectrum analyzer covers any frequency from 240MHz to 960MHz, such as amateur radio, all Vhf and Uhf, Fm Radio, Gps, Wifi and for Wimax, Bluetooth and more. Firmware: for Jstvro 3g Combo is supplied with upgraded firmware V1.09.

Package List

1 x Spectrum Analyzer
1 x Antenna
1 x User Manual
