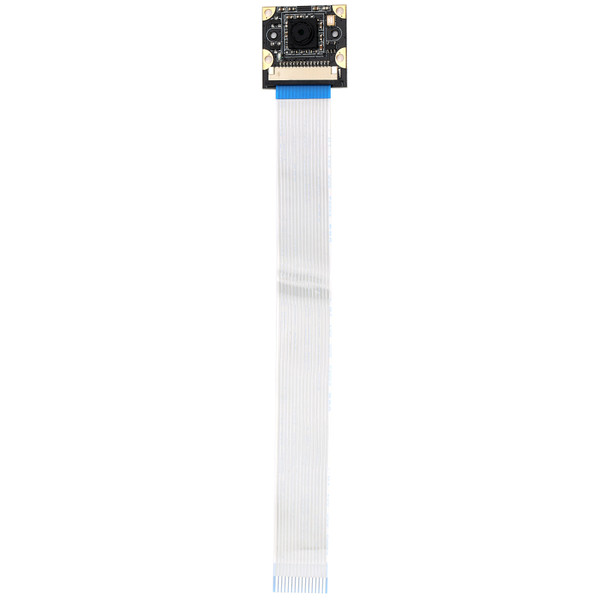

Product Overview
Condition: 100% Brand New
Item Type: Camera Module
Material: PCB/FPC
Color: As picture shown
Model: HBV-1509
Focal Length: 3.51mm
Diagonal Field Of View: 69.1°
Focus Method: Manual Focus
Aperture: 2.8
Power Supply: DC3.3V
Interface: CSI
Frame Rate: 30FPS
Sensor Pixels: 1080p
Photosensitive Chip: OV5647
CMOS Size: 1/4 Inch
Sensor Type: CMOS
The Highest Resolution: 2592 x 1944
Need To Drive: Free Drive
Support System: for Raspberry Pi system
Working temperature: -20℃ - 70℃ conventional
Application scope: for Raspberry Pi development board
Item Type: Camera Module
Material: PCB/FPC
Color: As picture shown
Model: HBV-1509
Focal Length: 3.51mm
Diagonal Field Of View: 69.1°
Focus Method: Manual Focus
Aperture: 2.8
Power Supply: DC3.3V
Interface: CSI
Frame Rate: 30FPS
Sensor Pixels: 1080p
Photosensitive Chip: OV5647
CMOS Size: 1/4 Inch
Sensor Type: CMOS
The Highest Resolution: 2592 x 1944
Need To Drive: Free Drive
Support System: for Raspberry Pi system
Working temperature: -20℃ - 70℃ conventional
Application scope: for Raspberry Pi development board
Features
1、Adopt HD photosensitive chip, strong stability, dependable to use.
2、5MP high‑definition, pure and delicate picture quality, clearer image.
3、Features 69.1° field angle, provides you with wider field of viewing.
4、3.51mm focal length, manual focus, completely meet your needs.
5、30FPS frame rate, free drive designed, fit for Raspberry Pi system.
Package List
1 x Camera
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 0.39 Inch |
| Length | 3.51 Inch |
