Product Overview
Material: Aluminium Alloy
Transmission Range: Up to Approx. 50m/164.0ft Using CAT 5E/6 Cable
HD Multimedia Interface Specification: HD Multimedia Interface 1.3 and HDCP 1.2 Compatible
Video Resolution: 480P60, 576i50, 720P50/60, 1080i50 60, 1080p50 60
TX Parameters:
Output Port: RJ45x2, HD Multimedia Interfacex2
HD Multimedia Interface Loop Output: Support
Transmitter Size: Approx. 130x82x20mm / 5.12x3.23x0.79in
RX Parameters:
Output Port: HD Multimedia Interfacex1
Receiver Power Supply: POE from TX
Receiver Size: Approx. 95x50x19mm / 3.74x1.97x0.75in
Features
1、Purpose: This 1x2 HD Multimedia Interface extender splitter allows you to extend and distribute 1 HD Multimedia Interface sound and video signal to 2 HD Multimedia Interface displays simultaneously over CAT5e/6 cable while maintaining signal strength and lossless video.
2、Easy Installation, Superior Sound: The HD Multimedia Interface loop through on the transmitter provides convenience and flexibility for your installation. Provides up to 7.1 channels of surround or stereo digital sound. This product can be widely used in HD advertising system, conference system, etc.
3、POC Function: Supports POC function, which means that the power is supplied through the cable, and the operation of the whole kit can be supported by using only one power adapter, which reduces a lot of complicated operations and makes it more simple and convenient.
4、1080P Lossless Transmission 50m: Support up to 1080P 60Hz video resolution and support 3D visual enjoyment. Support sound and video synchronous transmission, superior sound and video synchronous transmission, stable, clear and fluent.
5、Plug and Play, Heat Dissipation: Plug and play, no driver required. Aluminum alloy shell is sturdy, the body is equipped with a heat sink, effectively reducing the heat damage to the machine and extending its service life.

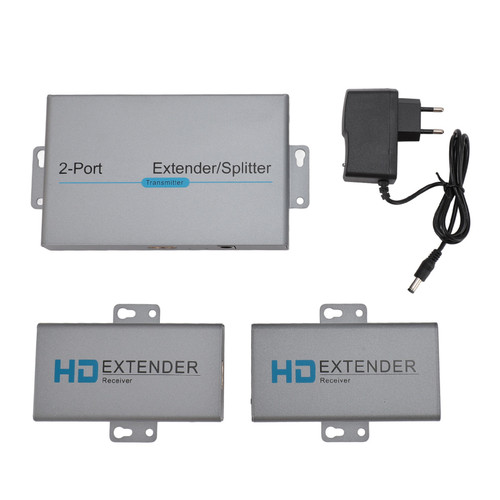

Package List
1 x Transmitter
2 x Receiver
1 x Power Adapter
1 x Instruction Manual
Package Weight and Dimension
| Weight | 1.42 lb |
| Width | 7.02 Inch |
| Height | 1.95 Inch |
| Length | 10.53 Inch |
