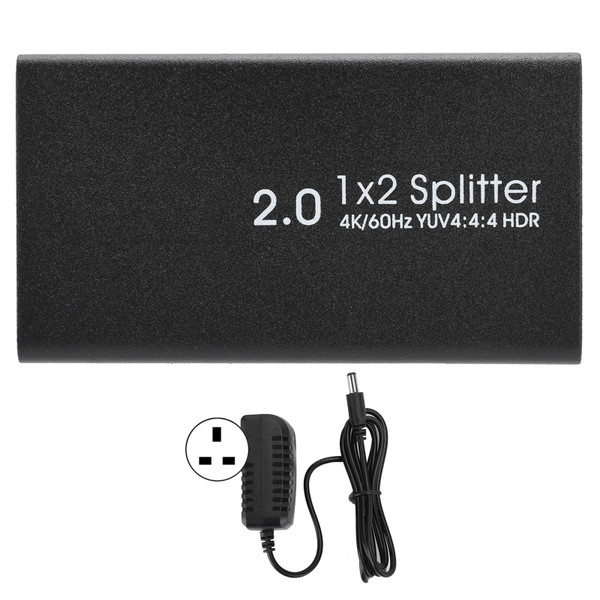

HDMI 2.0 Splitter Full HD 4Kx2K Video HDMI Switcher in 2 Out Amplifier Display 100‑240VUK Plug

Condition: 100% Brand New
Item Type: HDMI 2.0 HD Splitter
Material: Steel Casing
Color: As Pictures Shown
Weight: Approx. 264.0g
HDMI Support HDCP Version: HDCP 2.2
HDMI Input and Output Resolution: Support Maximum 4K/60fs
HDMI Maximum Support Video Color Format: 2160p, 10/12 bits, 24/25/30Hz,  2160p, 10/12 bits, 50/60Hz
HDMI Maximum Transmission Bandwidth: 600MHz
HDMI Support Audio Format: DTS‑HD/Dolby‑trueHD/LPCM7.1/DTS/DOLBY‑AC3/DSD
HDMI Maximum Transmission Speed: 18 Gbps
Input/output TMDS Signal: 0.5~1.5Vp‑p(TTL)
Input and Output DDC Signal: 5Vp‑p(TTL)
HDMI Input Cable Length: ≤3 m(9.8ft) AWG26 HDMI Standard Cable
HDMI Output Cable Length: ≤3 m(9.8ft) AWG26 HDMI Standard Cable
Maximum Working Current: 215mA
The Power Adapter Spec: AC 100V‑240V 50/60HZ,DC 5V/0.25A
Working Temperature: ‑10~+55℃
Storage Temperature: ‑20~+60℃
Working Humidity: 10~90%RH (no Condensation)
Storage Humidity: 5~95%RH (no Condensation)

Features

1、One HDMI signal input and two HDMI signal outputs are allocated.
2、HDMI supports up to 4K/60fs resolution.
3、Support automatic EDID, support different resolutions output.
4、Support 24 bits/dark color 30 bits /36 bits.
5、Support for blue‑ray DVD24/50/60fs/HD‑DVD/xvYCC.
6、Support DTS‑HD/Dolby‑trueHD/LPCM7.1/DTS/DOLBY‑AC3/DSD audio format.
7、Support signal timing reorganization.
8、With AWG26 HDMI 2.0 version cable, the input transmission distance is up to 3 m(9.8ft), and the output transmission distance is up to 3 m(9.8ft).
9、Lossless transmission of video and audio.

Package List

1 x HDMI 2.0 HD Splitter

1 x Power Supply

1 x Manual
