Product Overview

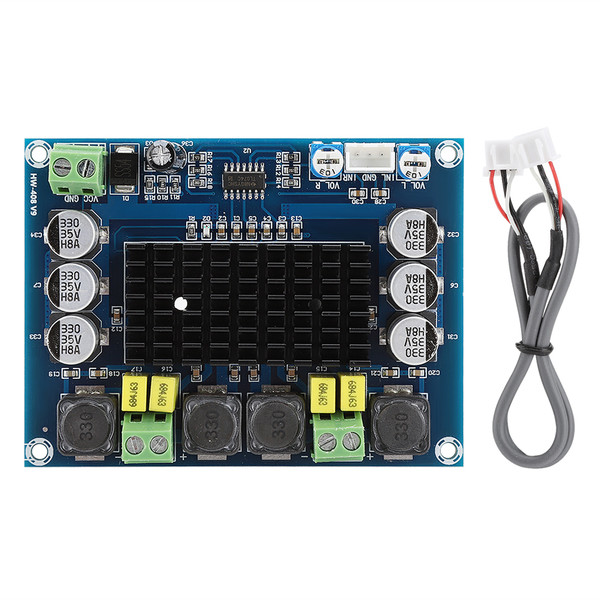

Item Type: Power Amplifier Board
Product Name: TPA3116D2 Digital Amplifier
Input Voltage: DC 12-26V (24V recommended)
Output Power: Up to 120W x 2
Number of Sound Channels: Double Channels
Product Name: TPA3116D2 Digital Amplifier
Input Voltage: DC 12-26V (24V recommended)
Output Power: Up to 120W x 2
Number of Sound Channels: Double Channels
Features
1、Adopt TPA3116D2 power amplifier chip. High-power stereo digital amplifier, which can drive 100W/2Ω speakers in mono mode.
2、Double Channels. Efficient operation, efficiency higher than 90% with lower loss.
3、Reduce PSU requirements with a feedback power stage architecture with high PSRR.
4、Integrated self-protection circuit including overvoltage, undervoltage, overtemperature, DC, detection and short circuit protection.
5、The module adopts a large-capacity filter capacitor and a freewheeling protection diode to improve reliability.
Package List
1 x Power Amplifier Module
1 x Cable
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.73 Inch |
| Height | 0.78 Inch |
| Length | 3.51 Inch |
