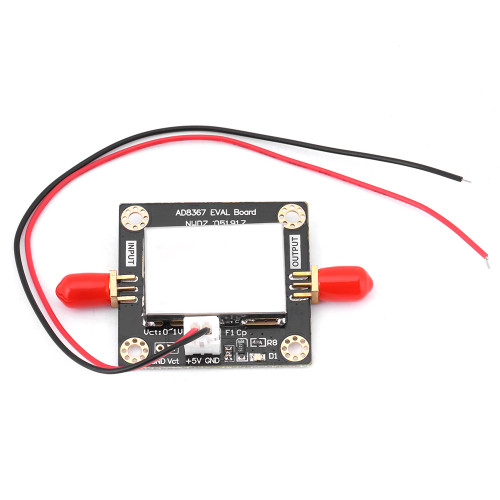

Product Overview
Item Type: IF Amplifier Module
Material: PCB
Model: AD8367
Working Current: 28mA
Working Frequency: 0.1-500MHz
Maximum Gain: 35dB
Maximum Output: 5dBm
AGC Range: 45dB
System Impedance: 50Ω (stable work)
Material: PCB
Model: AD8367
Working Current: 28mA
Working Frequency: 0.1-500MHz
Maximum Gain: 35dB
Maximum Output: 5dBm
AGC Range: 45dB
System Impedance: 50Ω (stable work)
Features
1、The surface of the product is smoothly, the integral molding has no burrs and the installation is smoothly.
2、Using 1.6mm thick PCB double‑sided board, strong and durable, has a long service life.
3、Adopting the whole process of spraying tin with good passing performance of large and small currents.
4、IF amplifier module has a large heat dissipation area to make sure stable operation and long running time.
5、Operating frequency is 0.1‑500MHz, maximum gain is 35dB and maximum output is 5dBm.
Package List
1 x IF Amplifier Module
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 1.95 Inch |
| Height | 1.56 Inch |
| Length | 5.07 Inch |
