Industrial Microscope Camera 4K HD 8.3MP Digital High Definition Multimedia Interface USB Output 100‑240VAC EU Plug

Item Type: Industrial Microscope Camera
Output Mode: High Definition Multimedia Interface, USB
Pixels: 8.3MP
Sensor Size: 1/1.8, for IMX334
Pixel Size: 2.0μm x 2.0μm
Resolution Frame Rate: 3840X2160 at 30FPS, 1920X1080 at 30FPS
Magnification Setting: Display magnification in real time
Image Storage: U disk
Video: 4K(30 frames), 1920X1080(30 frames)
Exposure: Automatic and manual
White Balance: Auto or a click
RGB: Red, green and blue independently adjustable, color temperature adjustable
Mirror Settings: Black and white, horizontal mirror, vertical mirror
Image Adjustment: Brightness, contrast, saturation, sharpness, noise reduction, prevent flicker
PC Software: For KOPPACE-VIEW(support photography, video, measurement)
Power Supply: DC12V 1A
Camera Port: C port
Languages: Chinese, English, Traditional
Digital Amplification: Support 10X Digital amplification
Same Screen Comparison: Support 2 screen and 4 screen comparison
Measurement Functions: Straight line, line spacing, vertical line, rectangle, polygon, angle, arc, radius drawing circle, circle margin, arbitrary line, text annotation and so on
Mouse Battery: 1 x AA battery(not included)

Features

1、MEASUREMENT CONTENT: Industrial microscope camera can measure straight line, line spacing, vertical line, rectangle, polygon, angle, arc, radius drawing circle, circle margin, arbitrary line, text annotation, etc.
2、CLEAR IMAGE: Digital microscope camera built in newly developed forARM dual core architecture, improve image clarity. Bring HD photo, video and preview playback
3、OUTPUT MODE: 4K industrial camera support 4K output image, real time frame rate 30FPS, equipped with High Definition Multimedia Interface, USB synchronous output
4、SENSITIVE AND LOW NOISE: Industrial microscope camera is equipped with high performance photosensitive chip, low noise, high sensitivity, and real color
5、SUPPORT FUNCTIONS: USB digital microscope camera support U disk storage function, can be connected to mouse. Support 10X digital amplification, support for the same screen comparison, support for 4 screen comparison

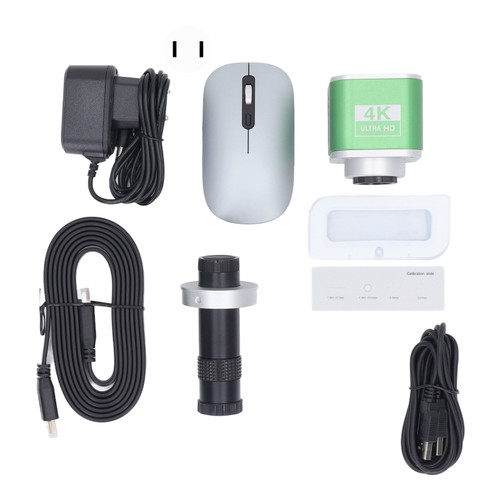

Package List

1 x 4K Camera

1 x High Definition Multimedia Interface Cable

1 x USB Cable

1 x CD

1 x Plug

1 x Mouse(battery not include)

1 x Measuring Scale Ruler

1 x Storage Box

1 x User Manual
