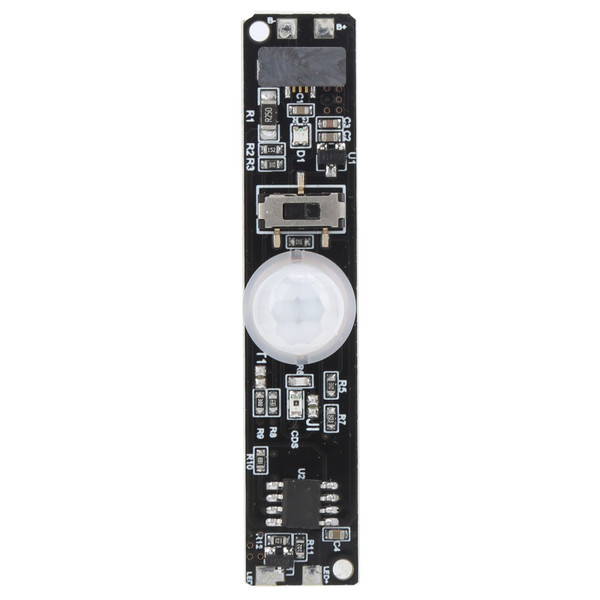

Infrared Motion Sensor Module ABS with 3.7V Lithium Battery for Kitchen Cabinet Light By

Item Type: Infrared Motion Sensor Module
Material: ABS
Model: LZG-PIR-3.7V-V4
Purpose: Circuit board of kitchen cabinet light
Charging Voltage / Constant Voltage: DC 5V 1A
Sensing Distance: Approx. 3 meters / 9.8ft effective distance in a straight line
Photosensitive: The light is lower than or equal to 10Lx and the infrared switch is activated
Applicable Battery: Lithium battery voltage 3.7V (please determine the battery capacity according to the power of the lamp)
Lighting Delay: Adjustable delay.
Default single delay time: 20 seconds
Light Control Function: Light intensity <10Lx to start the infrared sensor
Induction Angle: <120
Refresh Overlap: Within 5 seconds before the light is turned off, if the sensor detects the signal again, the delay time will be increased once.
Use: Suitable for lighting. People come to light up automatically. After the delay time is reached, no signal is sensed, and the light is automatically turned off

Features

1、With small size, the sensor module is very easy and quick to use foe novices.
2、The sensor is very sensitive, the larger the signal area captured by the probe, the higher the sensitivity, the longer the distance.
3、Widely used in lighting products, the module is very suitable for kitchen cabinet lights.
4、When the light is lower than or equal to 10Lx, the infrared switch is activated.
5、The module can delay lighting, which is also adjustable. Default single delay time is 20 seconds.

Package List

1 x Module

1 x User Manual
