Product Overview
Material: ABS
Model: CH10
Thermal Imaging Resolution: 192x144
Temperature Range: -20℃ to +350℃
Lens Focal Length: 2.5mm
Laser Indication: Not supported
Free Spot Measurement: Supported
Temperature Measurement Method: Center point, cold hot spot
Detector Type: Uncooled vanadium oxide focal plane detector
Pixel Size: 12μm
Spectral Range: 8μm to 14μm
Thermal Sensitivity: <40mk at f/1.0
Thermal Imaging Field of View Angle: Horizontal: 37.8° Vertical: 50.6°
Thermal Imaging Focusing Mode: Fixed focus
Thermal Imaging Close Range: 0.5m
Lens Aperture: F1.0
Thermal Imaging Denoising: 2D 3D denoising
Color Palette: Supports four adjustable pseudo colors: white heat, black heat, rainbow, and iron red
Temperature Measurement Accuracy: ±2℃ or ± 2% of reading
Display Screen Size: 2.4 Inch LCD
Sound and Light Warning: Supports buzzer sound alarm
Alarm Linkage: Supports over temperature alarm linkage, buzzer, and screenshot
Storage Function: Supports micro storage card storage, 256GB (without)
Fault Detection: Memory card status detection, storage space detection
Cold and Hot Spot Tracking: Supports automatic tracking of the hottest and coldest spots in the entire picture
USB Interface: Micro USB
Power Supply Method: DC5V or built in battery power supply
Battery: Rechargeable lithium battery 1000mah x 1 (built in)
Power Consumption: <1W
Standby Time: >8h
Working Temperature: -20℃ to +50℃
Protection Grade: IP54
Features
1、[Full Screen Display] With about 50,000 temperature measurement points on the full screen, this infrared thermal imager allows for intuitive visualization of target temperatures.
2、[4 Modes] Supporting four adjustable pseudo color modes, including white hot, black hot, rainbow, and iron red, users can choose their preferred observation mode to explore a new world of thermal imaging.
3、[Powerful Client] This thermal imaging camera supports photo and video recording for later reference. The captured thermal images can be analyzed on the client side, and report export is also supported.
4、[Reliable Protection] This thermal imager has an IP54 protection rating and a 2 meter drop resistance level, comes with an anti drop wrist strap, reducing the risk of accidental drops during use.
5、[Versatile Applications] Suitable for applications such as HVAC maintenance, automotive diagnostics, power inspections, solar panel inspections, and more, this infrared thermal imager offers wide ranging usability for various industries and tasks.

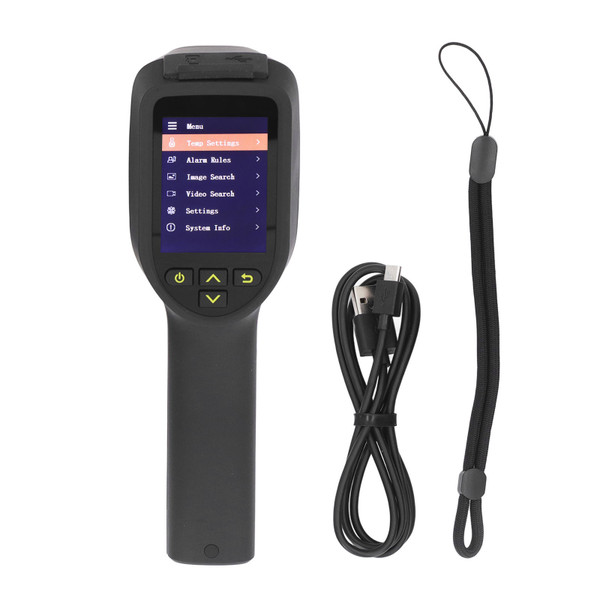

Package List
1 x Thermal Imager (Storage Card Not Included)
1 x USB Cable
1 x Lanyard
1 x User Manual
Package Weight and Dimension
| Weight | 1.73 lb |
| Width | 5.85 Inch |
| Height | 4.68 Inch |
| Length | 9.36 Inch |
