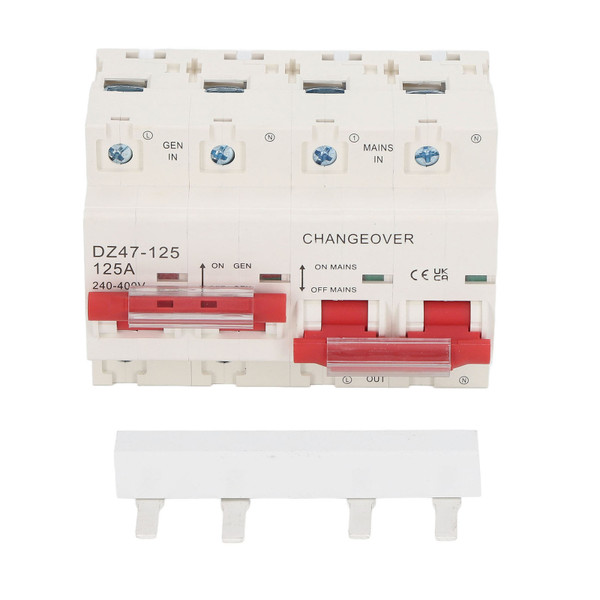

Interlock Transfer Circuit Breaker Dual Power 125A 2P and 2P 10KA Breaking Capacity Transfer Switch AC 240‑400V

Item Type: Interlock Transfer Circuit Breaker
Material: Pa66
Rated Current: 125A
Number of Levels: 2P and 2P
Segmentation Capacity: 10KA
Electrical Life: Not less than 10,000 times
Mechanical Life: Not less than 20,000 times
Temperature and Heat Test: Class 2 (temperature at 55℃, relative humidity 95%)

Features

1、Interlock Circuit Breaker: This circuit breaker is a 2P and 2P switch for switching between the generator and the main power supply to maintain a stable power supply.
2、Leakage Protection: The circuit breaker has a multilevel circuit breaker interlocking mechanism, which can realize the leakage protection function of main circuit and auxiliary circuit at the same time.
3、Manual Transfer: When the normal power supply fails, the backup power supply or generator can be transferred manually to ensure the reliability and safety of the power supply.
4、Pa66 Housing: Small circuit breaker with advanced structure, reliable performance, high breaking capacity, the shell is made up of impact resistant, high flame retardant materials.
5、Wide Application: This circuit breaker is ideal for places where power outages are not allowed, such as fire protection, hospitals, skyscrapers, military industries, construction markets, banks, networks, etc.

Package List

1 x Interlock Transfer Circuit Breaker

1 x Busbar
