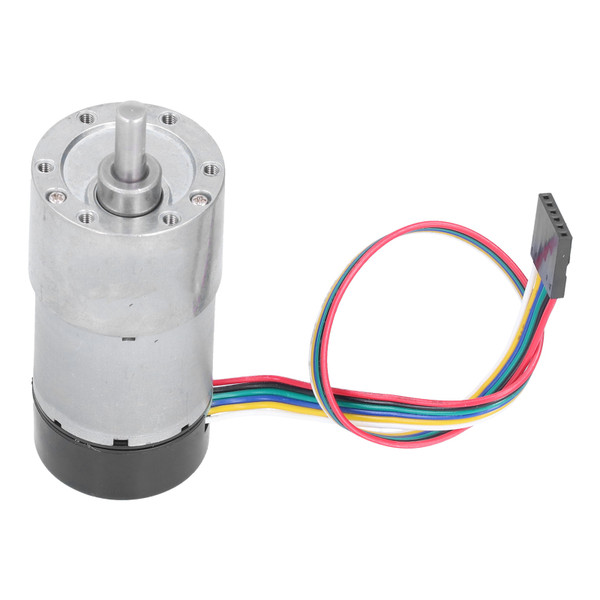

JGB37‑3530 DC12V Encoder Metal Gearmotor Speed Reduction High Torsion Encoder Gear Motor267RPM

Item Type: Encoder Metal Gearmotor
Material: Zinc Alloy, Copper
Operating Voltage: DC 12V
Output Signal: Squares Waves AB Phase
Output Shaft Size (Diameter x Length): Approx. 6x12mm / 0.2x0.5in
Motor Diameter: Approx. 36.7mm/1.4in
Whether To Measure Speed: Can Measure Speed
Whether Forward And Reverse: Can Be Forward and Reverse
Temperature Range: -40℃~120℃
Purpose: Industrial Drive Device

Features

1、The use of all metal materials makes it more wear resistant, rust proof and prolongs its service life. The copper wire has super electrical conductivity, which makes the motor output like water and high temperature resistance.
2、The built in encoder measures the speed to ensure that a whole set of motors have the same speed and the same transmission speed. Two channel and three channel magnetic encoders with increased mile, suitable for any harsh environment.
3、After the gear is ground, it is heat treated, which has the advantages of wear resistance, long life, and low noise. The protective cover protects the encoder and prevents it from becoming dusty and unusable after being used for a period of time.
4、Each magnetic encoder contains a magnetic grid and a magnetic sensitive detection motor, and outputs two channels of squares waves with a quadrature phase angle of 90°, and each motor has 16 pulse signals for each circle AB.
5、This encoder gear motor is suitable for massage chairs, electric ovens, medical equipment, baby electric shakers, paper shredders, electric doors and window and industrial drives.

Package List

1 x Motor
