Product Overview

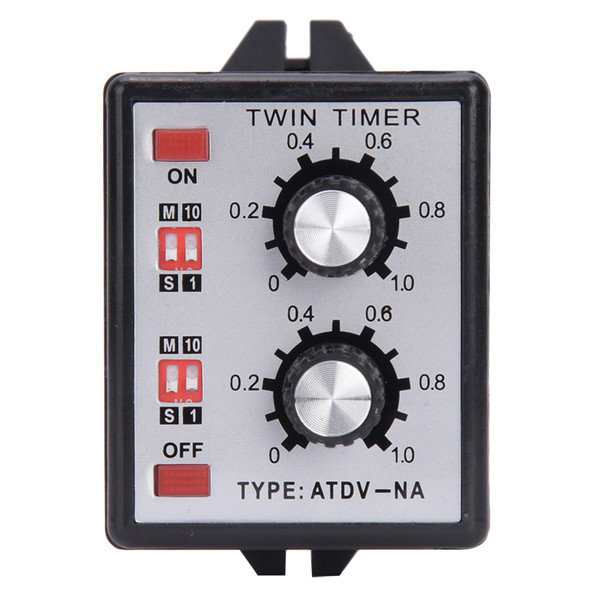

Item Type: Knob Control Time Switch Relay
Model: ADTV-NA
Specification: 1 second/10second/1minute/10minutes
Power Frequency: 50/60Hz
Contact Capacity: 250VAC5A resistive load
Return Time: Maximum 0.2s
Power Consumption: About 2VA
Service Life:
Mechanical: 5,000,000 times
Electrical: 100,000 times (within rated capacity)
Use Ambient Temperature: -10 ~ +50℃
Use Ambient Humidity: Maximum, 85%RH
Model: ADTV-NA
Specification: 1 second/10second/1minute/10minutes
Power Frequency: 50/60Hz
Contact Capacity: 250VAC5A resistive load
Return Time: Maximum 0.2s
Power Consumption: About 2VA
Service Life:
Mechanical: 5,000,000 times
Electrical: 100,000 times (within rated capacity)
Use Ambient Temperature: -10 ~ +50℃
Use Ambient Humidity: Maximum, 85%RH
Features
1、Dedicated CMOSIC with power saving, stable and accurate characteristics
2、Can set its ON-OFF continuous action and time separately
3、16 kinds time combinations for customers choice
4、Each time series can be switched by the DIP switch in four different time ranges
5、High-accuracy chips, stable control, accurate temperature control and high sensitivity
Package List
1 x Knob Control Time Switch Relay
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 3.51 Inch |
| Length | 4.68 Inch |
