Product Overview
Material: ABS, PCB
PCIE Interface: Connect PCIE Interface Equipment, Such As Graphics Cards, Sound Cards, Array Cards, Capture Cards, Etc.
6P Power Output: Provide 6pin, 8pin Interface Output
8P Power Interface: Equipment Power Supply Interface, Notebook Control Power Switch
DC Power Interface: 5.5x2.1mm DC Holder (DC 12V, 150W Maximum)
High Definition Multimedia Interface: Connect MiniPCIE, Expresscard, NGFF (M.2) A E Key or M Key, PCIE X4 Adapter Cable
Features
1、Function: EXP GDC is a laptop external graphics adapter device; supports PCIE X16, actual X1 mode (upgradeable to X2 mode depending on different laptop configurations).
2、Operating System: Support for Windows XP 7 8 8.1, for Linux, etc. (Reminder: for Win XP, for Win8 8.1 are only compatible with laptops with external screens).
3、Expansion Support: PCIE X16: DMI GT/s (X1) 5; Power support: 8P Interface: 220W Maximum, DC interface: 150W Maximum.
4、Warm Tips: If you use the laptop's own display, the laptop is required to introduce for Intel HD graphics and externally connect a GTS450 and above. Otherwise, an external display is required.
5、Wide Applications: Suitable for industrial applications, such as engineering survey, data acquisition, server debugging, GPU computing, etc. It can also be used to play games.
Package List

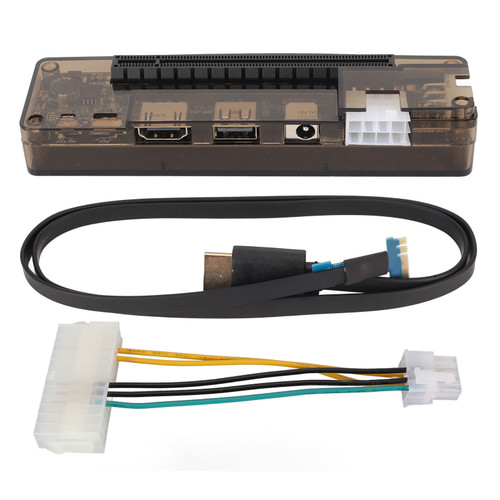

1 x Graphics Card Docking Station
1 x HD Multimedia Interface To Expresscard Cable
1 x Power Adapter Cable
1 x User Manual
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.9 Inch |
| Height | 1.95 Inch |
| Length | 7.02 Inch |
