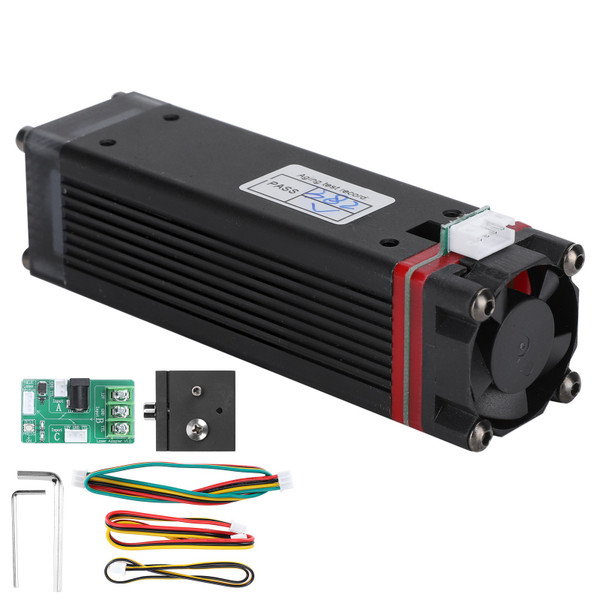

Laser Cutting Moudle for Engraving Machine 3D Printer Equipment Accessories 30W 7500mW

Rating *

Name

Email *

Review Subject *

Comments *

$181.14

Shipping: Free Shipping

Product Overview

Item Type: Laser Cutting Moudle
Model: For NEJE Module 30W
Heat Sink Material: Aviation aluminum + brass shell
Luminous Color: Blue
Section Size: Approx. 40 x 40mm / 1.6 x 1.6in
Cooling Method: Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Adapter Plug: 5.5 2.1 port
Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave: Metal/glass/stone/ceramic/PCB/stainless steel/reflective material/transparent material
Technical Parameter:
Module Input: 20-30W (up to 30W)
Optical Power Output: 7.5W (7500mW)
Wavelength: 445-450nm
Beam Shape: Dot (focusable)
Working Voltage: DC 12V
TTL&PWM Modulation: Yes, compatible with TTL and PWM modulation at the same time
Input Voltage: DC12V 3A
PWM / TTL Input: DC3.3V-12V
Input Interface: PH2.0-4Pin (+, -, PWM / TTL, temperature), 3Pin (+, -, PWM / TTL), 2Pin + 2Pin (+, -) + (PWM / TTL, -)
Drive Mode: External ACC
Safe Temperature Range: <60℃
Life: 10000-20,000 hours

Features

1、This product is designed for general‑purpose laser engraving, laser cutting, 3D printer and other CNC equipment.
2、3.3‑12V TTL adjustable power, with 7.5W optical power output, can be upgraded directly on the basis of 20W.
3、Widely applicable, there are DC12V+TTL, 3Pin 2.54 interface, 3pin connection port 3 kinds of input interface design.
4、Convenient to fix the focus, only need to put a 6mm spacer on the bottom and lock the screw to adjust the focus.
5、30mm size does not affect the engraving area of for NEJE Master2, with view protection and modified laser air assist.
6、Can detect the temperature and dynamically adjust the fan speed, making it quieter when not in use.
7、15000 rpm double ball high speed fan, with strong heat dissipation performance.
