Product Overview
Weight: 522g/18.41oz
Product Material: Aluminum alloy, ABS
Maximum Controller Current: 15 ± 1A
Controller Power: 250W
Product Application: suitable for 36V, 48V 250W motors
Features
1、Product Design: The controller housing adopts a flute design; due to its excellent heat dissipation function, it can keep internal circuits safe from thermal overload.
2、Reliable Material: The panel is made of ABS material, which is light and strong; It has fine workmanship, toughness and waterproof performance, making the circuit more durable.
3、Strong Securiy: The product has stable and reliable performance; It has many functions such as undervoltage, overcurrent, and stall prevention to ensure the safe use of electric bikes by users.
4、Product Functions: When riding a bike, this product will display many useful data on your bike, such as on off buttons, light switches, battery power display, and other functions.
5、Main Uses: It is used for DIY electric bikes. scooters, etc; Lithium battery modification of bikes greatly improves riding pleasure, and is suitable for cyclists who like challenges.

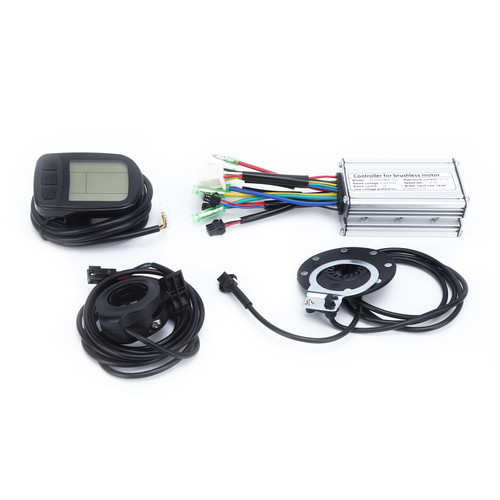

Package List
1 x Controller
1 x Meter
1 x Thumb Throttle
1 x Pedal Asist Sensor
2 x Instructions
Package Weight and Dimension
| Weight | 1.15 lb |
| Width | 5.46 Inch |
| Height | 4.29 Inch |
| Length | 7.8 Inch |
