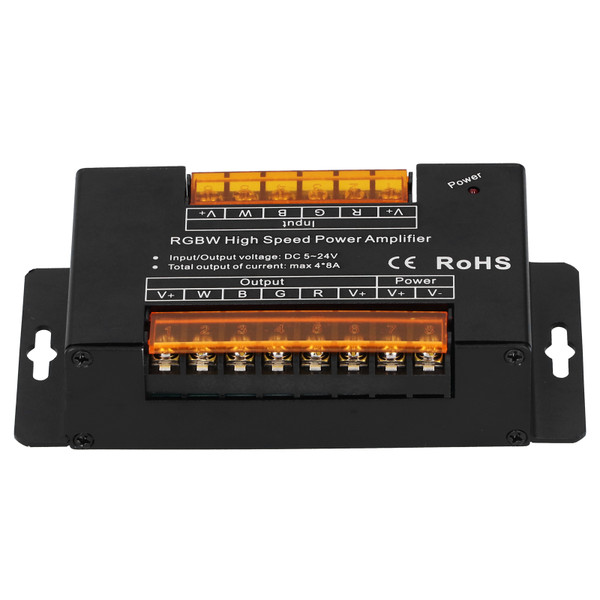

LED Signal Amplifier Module for Home RGB Light Strip Controller 0.1%100% DC5V24V

Item Type: LED Signal Amplifier
Product Material: Iron
Product Size: LWH: Approx. 11.7 x 3.4 x 7.3cm / 4.6 x 1.3 x 2.9in
Working Temperature: -20-60 ℃
Input Signal: PWM dimming signal
Dimming Range: 0.1%-100%
Connection Method: Common anode 20NS
Weight: Approx. 264 g / 9.3 oz

Features

1、High-speed high-current power expander, suitable for PWM controlled LED controller, can amplify the power of LED controller.
2、Each additional extender can be connected to double to three times the number of LED lights, and can be cascaded, theoretically unlimited power extenders can be connected
3、Convenient for unified control of LED lamps with different voltages, high power and low power.
4、The use of high-speed optical coupling design can achieve extremely low delay time to ensure synchronization with the host when multiple units are cascaded.
5、As long as it is PWM controlled and the voltage is appropriate, this series of power expanders can be used.
6、The signal controller has hanging holes at both ends, which is convenient to use, much more convenient than ordinary controllers.

Package List

1 x Signal Amplifier

1 x User Manual
