Line Locator HighAccuracy Wire Finder RJ45 RJ11 LAN Network Cable Tester TXJ001

Item Type: Line Locator
Support Cable Types: 4P/8P network cable, telephone cable, BNC cable, single wire, optical fiber
Maximum Test Distance> Approx. 200meter / 656.2ft
Maximum Scanning Distance> Approx. 300meter / 984.3ft
Signal Frequency: 455Khz
Battery Type: 2 x 9V 6f22 (not included)
Transmitter Maximum Withstand Voltage: 60V
The Highest Withstand Voltage of Receiver: 9V
Maximum Power Consumption of Ejector: 0.15W
Maximum Receiver Power Consumption: 0.2W
Fiber Power: 5mW
Environmental Working Temperature: 0℃-55℃
Relative Humidity: 10%-90% (no condensation)
Storage Temperature: -10℃-60℃
Relative Humidity: 5%-90% (no condensation)

Features

1、Directly connected to standard POE and non‑standard POE, the side switch can adjust the sensitivity (volume).
2、When the crystal plug of the network cable is completed, the cable finder can be used to test the network cable connection.
3、This instrument is a multifunctional hand-held cable testing tool. It works perfectly when connected to the rj11 rj45 cable.
4、With enhanced cable types and multiple functions, it has a wide range of applications.
5、A necessary testing tool for telecommunication engineering, wiring engineering and network maintenance personnel.
6、This product has a flashlight function, which is convenient for finding lines in dark areas and is easy to use.

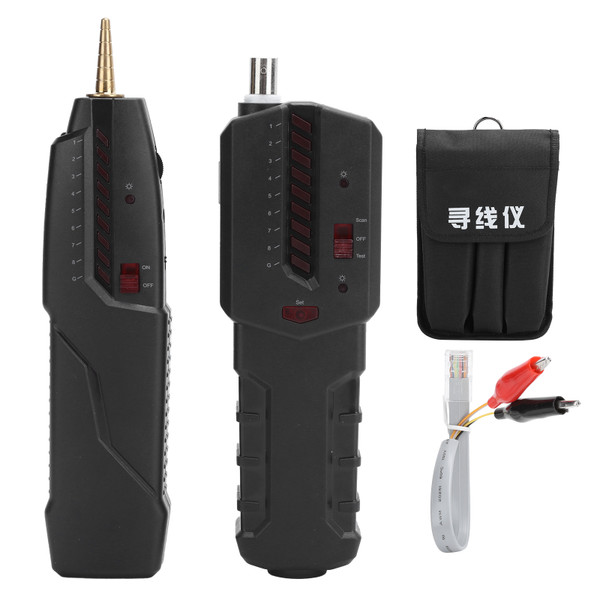

Package List

1 x Transmitter

1 x Receiver

1 x Adapter Cable

1 x Storage Bag
