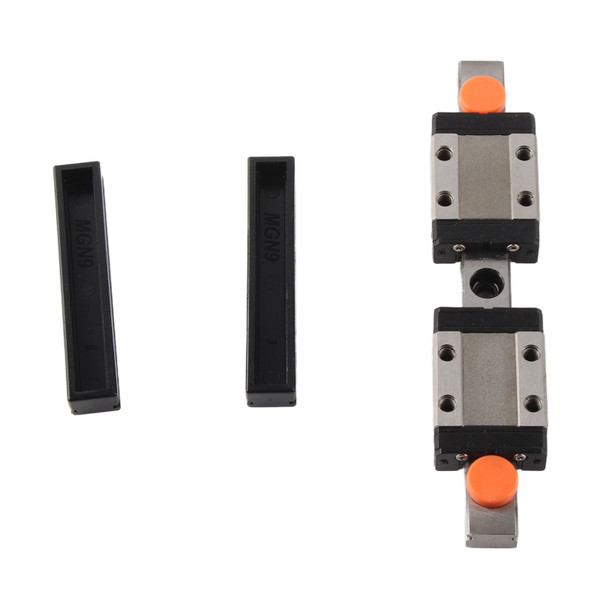

Linear Guide Rail High Accuracy Bearing Steel Strong Bearing Wear Resistant Linear Rail with 2 Slide Blocks

Item Type: Linear Guide Rail
Material: Bearing Steel
Product Length: Approx. 100mm / 3.94in
Basic Dynamic Rated Load:
C: 1.86 (k/N)
C0: 2.55 (k/N)
Allowable Static Moment:
MR: 11.76 (N-m)
MP: 7.35 (N-m)
My: 7.35 (N-m)
Sliding Trajectory: Linear guide rail
Number of Sliders: 2
Accuracy Level: H
Fixing Method of Slider: Locked type
Features:
1. The MGN series is small in size and lightweight, making it particularly suitable for small scale equipment use;
2. The slider and slide rail are made of bearing steel, which has the characteristics of bearing steel, anti slip, and durable
3. Adopting a gothic four point contact design, it can withstand loads in all directions and has strong rigidity and high accuracy
4. Equipped with a steel ball holder design, it has interchangeability with allowable accuracy

Features

1、WIDELY APPLICABLE: Linear guide rail is widely used in all fields that require accuracy linear transmission and positioning, such as automation equipment, accuracy measuring instruments, electronic semiconductors, pharmaceutical machinery, packaging and printing, welding and cutting, machine tool equipment, industrial manufacturing, and metallurgy.
2、BEARING STEEL MATERIAL: The sliding guide rail is made of high accuracy bearing steel, which can withstand high loads and is not easy to break.
3、SELF ALIGNMENT CAPABILITY: This sliding guide has self alignment function, which can achieve μM level positioning accuracy.
4、NOT EASY TO FALL OFF: The sliding guide block adopts a steel wire cage structure, which can effectively prevent the steel ball from falling off.
5、WEAR RESISTANT: This type of slider has a large number of steel balls, low friction, light weight, flexibility, smoothness, no resistance, and a longer service life.

Package List

1 x Linear Guide Rail
