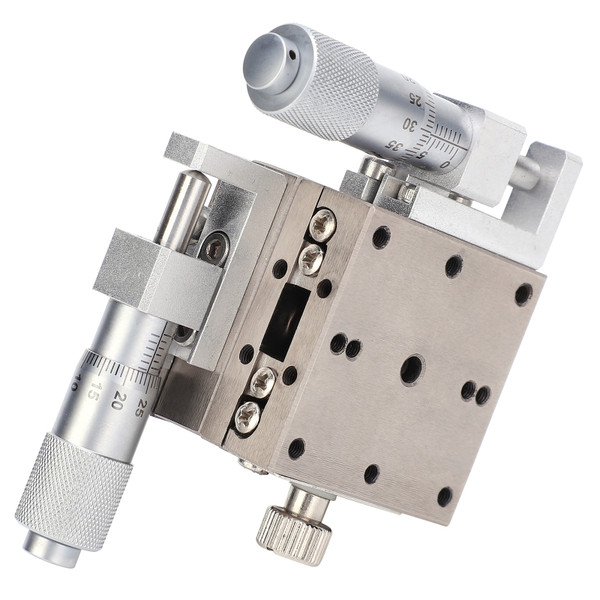

Linear Sliding Table Manual Platform XY Axis Guide Type Cross Roller Stage 40x40mm M2GS40

Item Type: Linear Sliding Table
Model: M2G-S40
Material: Stainless steel
Purpose: A mechanical device that can provide linear motion for equipment
Micrometer Movement (mm): ± approx. 6.5mm / 0.3in
Amount of Feed Screw Movement(mm): ± approx. 6.5mm / 0.3in
Sliding Table Surface: Approx. 40 x 40mm / 1.6 x 1.6in
Withstand Load(N): 17.6
Movement Accuracy (μm):
Straightness: 3
Parallelism: 20
Movement Accuracy (second):
Swing Up and Down: 25
Swing Left and Right: 15
Allowable Moment Load (N.M):
Swings Up and Down: 2
Shake Left and Right: 2.2
Side Scroll: 2
Moment Rigidity (second/N.cm):
Swing Up and Down: 0.66
Shake Left and Right: 0.84
Side Roll: 0.66
Parallelism (μm): 60
Rail Type: Roller

Features

1、Stainless steel material is wear‑resistant, corrosion‑resistant, waterproof and anti‑oxidation, possess higher accuracy and more stable than aluminum alloy
2、Accurate mechanical structure designs make the product works stable with high load‑bearing capacity
3、Linear sliding table is easy to use, possess large stroke and high displacement accuracy
4、The product is a mechanical device that can provide linear motion for equipment
5、Linear sliding table is light weight with good strength, durable for a long service life

Package List

1 x Linear Sliding Table
