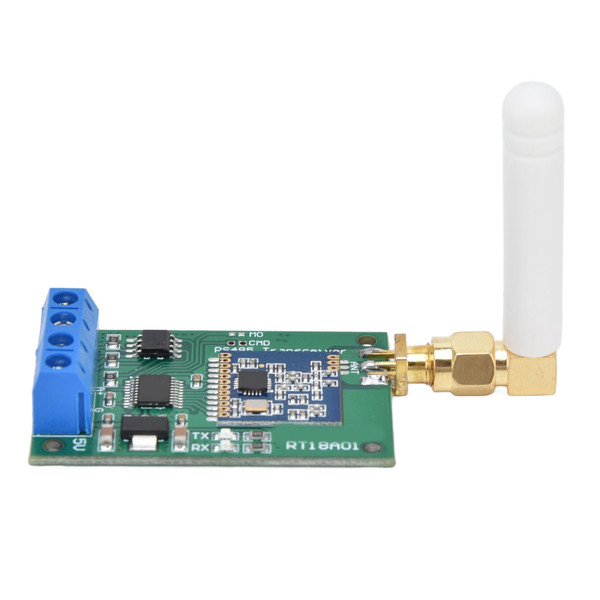

Master Slave Network Transceiver RS485 Wireless Repeater UHF FR Module Board RT18A01868MHz

Item Type: Master Slave Network Transceiver
Product Material: PCB
Product Model: RT18A01
Working Voltage: 5V
Working Current: 6-40mA
Interface: RS485
Transmitting Power: -40~+20dBm
Receiving Sensitivity: -114dBm
Working Temperature: -25~75℃
Transmission Distance: Approx. 500meter / 1640.4ft

Features

1、CONDUCIVE TO THE MINIATURIZATION: Come with high wiring density, small size and light weight, which is conducive to the miniaturization of electronic equipment
2、STRONG PENETRATING POWER: Possess strong penetrating power, strong signal stability, transmission distance up to 500meter
3、A VARIETY OF MODES: There are a variety of modes for you to choose from, easy to use, very convenient
4、‑40~+20dBm TRANSMITTING POWER: Using RS485 interface, transmitting power from ‑40~+20dBm, receiving sensitivity is ‑114dBm
5、GOOD QUALITY PCB MATERIALS: Good quality PCB materials have reliability and miniaturization, good maintenance and interchangeability

Package List

1 x Transceiver

1 x Antenna
